Round Bottle Self Adhesive Labeler (LTB-A)

Quantity:

LTB-A is an economical, self contained, easy to operate, equipped with LCD screen & PLC Control System. Built in microchip storing different job setting makes fast and easy changeover.
This automatic labeling system is ideal for cylindrical container with diameter from 30mm to 100mm.

Key Features:

1. Labeling speed up to 200 CPM
2. LCD & PLC Control System which is easy to control
3. Simple Straight Forward Operator Controls
4. On-Screen trouble description which is easy to solve
5. Stainless steel Frame
6. Open Frame design, easy to adjust and change the label
7. Variable Speed with stepless motor
8. Label Count Down (for precise run of set number of labels) to Auto Shut Off
9. Stamping Coding Device attached

Technical specifications:

Labeling Speed: 80-200bottles/minutes
(according to the specification, shape of bottle and length of label)
Bottles size: Φ 30~100 mm, height (can be customized based on the Requirements)
Dimensions: 1600mm× 700mm× 1100 mm( Length × Width × Height)
Weight: 200kg
Electrical Requirements:
- Power: 300W, Voltage: 220V, Frequency: 50-60Hz(Optional)
Working direction: Left Right (or Right Left)

Application:

Pharmaceuticals, Nutraceuticals, Cosmetics/personal care,
Household chemical, Food & beverage,

Pictures:

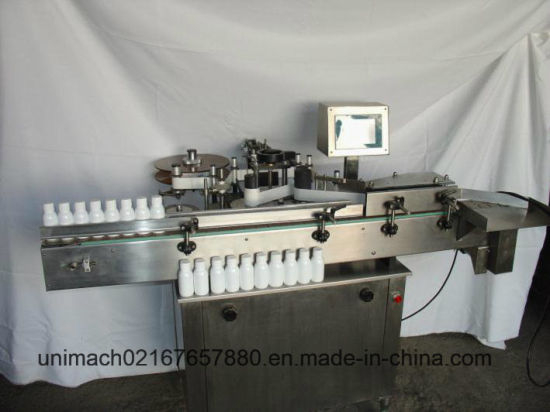

Round Bottle Self Adhesive Labeler (LTB-A)

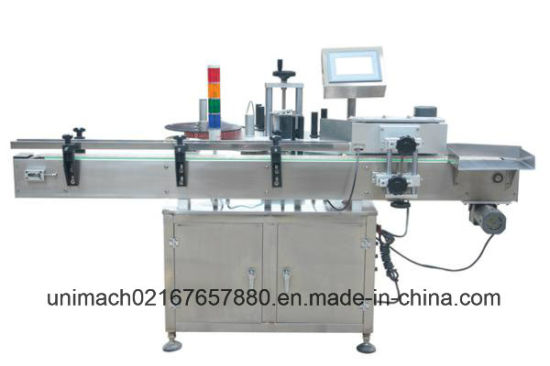

Round Bottle Self Adhesive Labeler (LTB-A)

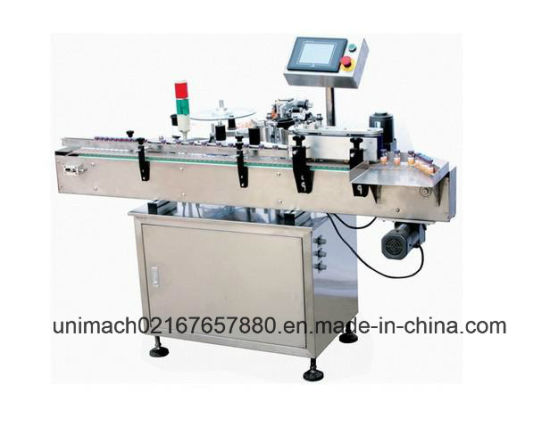

Round Bottle Self Adhesive Labeler (LTB-A)








Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G



FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
