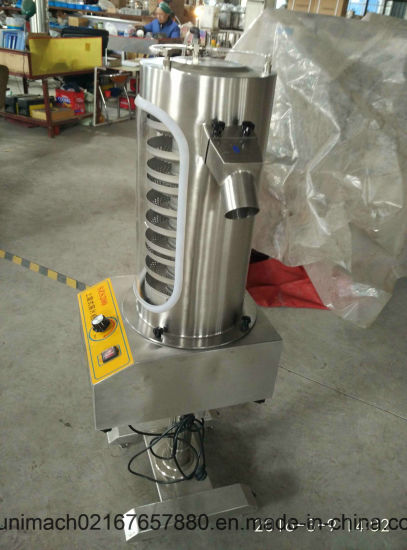

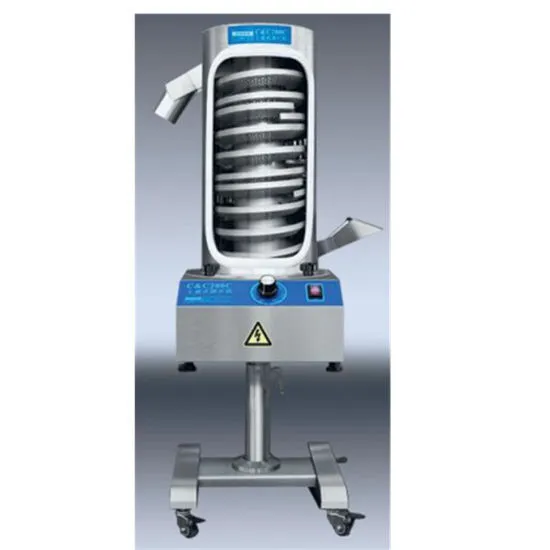

Szs Series Uphill Tablet Deduster Machine

Quantity:

Main Description
SZC-200 Uphill Tablet Deduster I s a special equipment to wipe out burr and dust of tablet whilst going up way. It can be connected with tablet press and metal detection systems. 316L stainless steel are used for all metal parts contacting tablets. Design of GMP.
Key Features
1). Body and cover of the machine take building-block design. Height of outlet is easy to adjust.
2). Parts in contact with medicine all made of 316L stainless steel. No blind spot during whole machine cleaning. Meet cGMP demands.
3). Fast-joint system to ensure safe and quick disassembly and assembly.
4). Outstanding efficiency can make mass production of Φ 3-Φ 35mm all-kind-shape tablet.
5). New design motor driver to make machine run more smoothly with lower noise.


model
SZS-200
Max.tablet Capacity(tablets/h) 1,000,000(Φ8×3mm)
Rated Power 150W

De-dusting distance
6.2m

Maximum diameter of the tablet
Φ25mm

Power supply
110V/220V 50Hz/60 Hz 1P

Compressed air
0.1m³/min,0.1MPa

Vacuum
2.5 m³ /min,-0.1MPa

Noise
<75(dB(A))

Dimension
500×550×1350-1500(mm)

Weight
70kgs



Szs Series Uphill Tablet Deduster Machine
Szs Series Uphill Tablet Deduster Machine
Szs Series Uphill Tablet Deduster Machine
Szs Series Uphill Tablet Deduster Machine


Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G



FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
