Tdp 1.5 Series Single Punch Tablet Press Machine

Quantity:
Tdp 1.5 Series Single Punch Tablet Press Machine
Tdp 1.5 Series Single Punch Tablet Press Machine

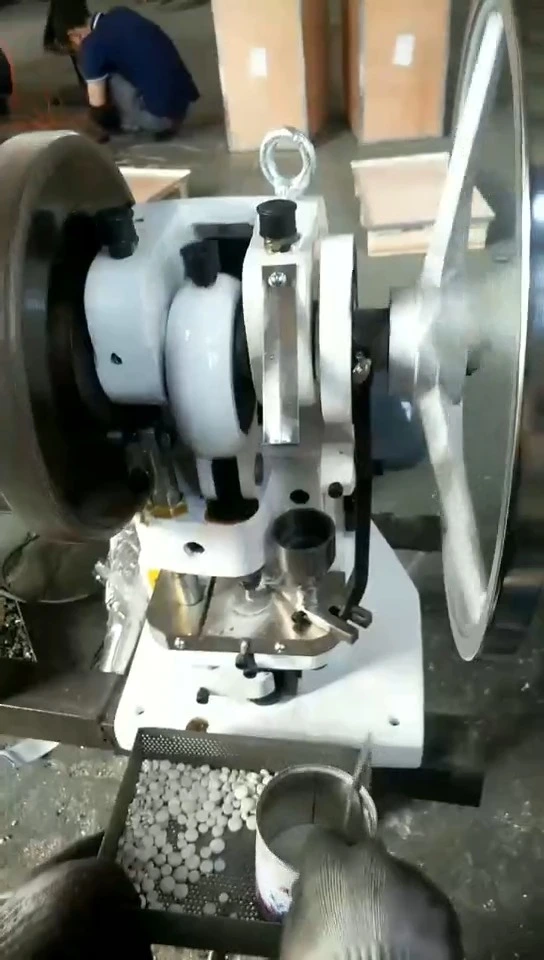

This machine is designed for pressing round tablets from various granular materials, applicable to lab used for research and development and to small-scale production. as its feature, it is a small desk-top continuous press driven by motor or man-power. Only one set of punch and die is mounted, the depth of the filling material and the thickness of the tablets can be adjusted.

  Technical specifications:
Item TDP-1.5 TDP-5 TDP-6
Dies 1 Set 1 Set 1 Set
Max. Pressure 15KN 50KN 60KN
Max. Diameter. of Tablet 12mm Round tablet 18mm,
Irregular tablet 20mm
Round tablet 20mm,
Irregular tablet 25mm
Max. Depth of Filling 11mm 18mm 17mm
Max.Thickness of Tablet 6mm 7mm 7.5 mm
Production Capacity 5000 tablets/H 4500 tablets/H 3000 tablets/H
Motor 550W/220V 750W/220V 1.1-1.5kw/220V
Machine Size 570*450*625mm 650*440*650mm 750*380*695mm
Net Weight 90kg 120kg 165kg
Samples:

Tdp 1.5 Series Single Punch Tablet Press Machine

Tdp 1.5 Series Single Punch Tablet Press Machine
Tdp 1.5 Series Single Punch Tablet Press Machine



Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G

FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
