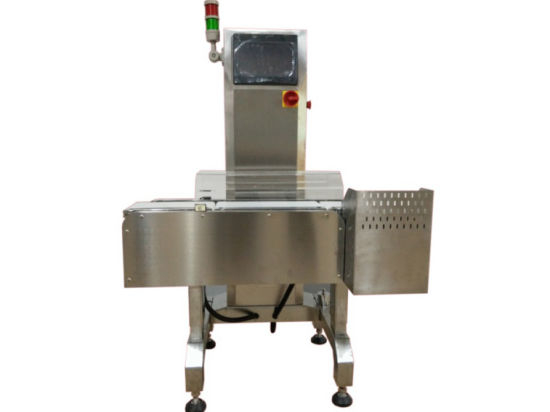

UN-150 High Efficiency Check Weigher
Feature:
1.Reinforced stainless steel frame,all water-proof design,
2.It adopts Germany HBM high accuracy sensor,it is based on the most advanced digital signal processing technology,high speed is realized and stable checking,.
3.Dynamic weight automatic compensation technology,0 point automatic analysis and trace technology,
4.It has 50 groups of product preset,simple product edit and storage,
5.Quick product changing-over and automatic adjust the correspondent product sorting speed,
6.Convenient USB test data,copy,storage function(options),
7.Color LED touch screen operation system,multi language operation interface,simple operation,
8.It can optionally match scanning system and automatic inkjet printer.
Technical specifications:
Weighing range | 3g-300g |
Conveying speed(meter/minute) | 5-85m |
Max. speed(bags/minute) | 70bags |
Standard accuracy | ±5g |
Width of conveyor belt | 150mm |
Reject method | Rejected by pushing rod |
Product preset mode | 50 group |
Power supply | 220V50HZ,single phase |
Power | 140w |
Outer air supply | / |
Air pressure connection size | 8mm |
Reserve connection (option) | / |
Levels of protection | Meets IP-30(PB)international standard (water-proof model meets IP-66 international standard) |
Weight | 95kg |
The height from the floor to the conveyor belt | 730±50mm(can be customized according to actual condition) |
Standard part list:
Name | Qty | Brand |
Touch screen | 1 | Weinview |
Motor | 3 | Taiwan taibang |
Inverter | 1 | Japan MITSUBISHI |
PLC | 1 | Japan MITSUBISHI |
Belt | 3 | Switzerland Habasit |
Pneumatic part | 1 group | Taiwan AirTAC |
Sensor | 1 | Germany HBM |
Photoelectric sensor | 1 | Japan OMRON |
Air breaker | 1 | Japan MITSUBISHI |
Relay | 2 | Japan OMRON |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
