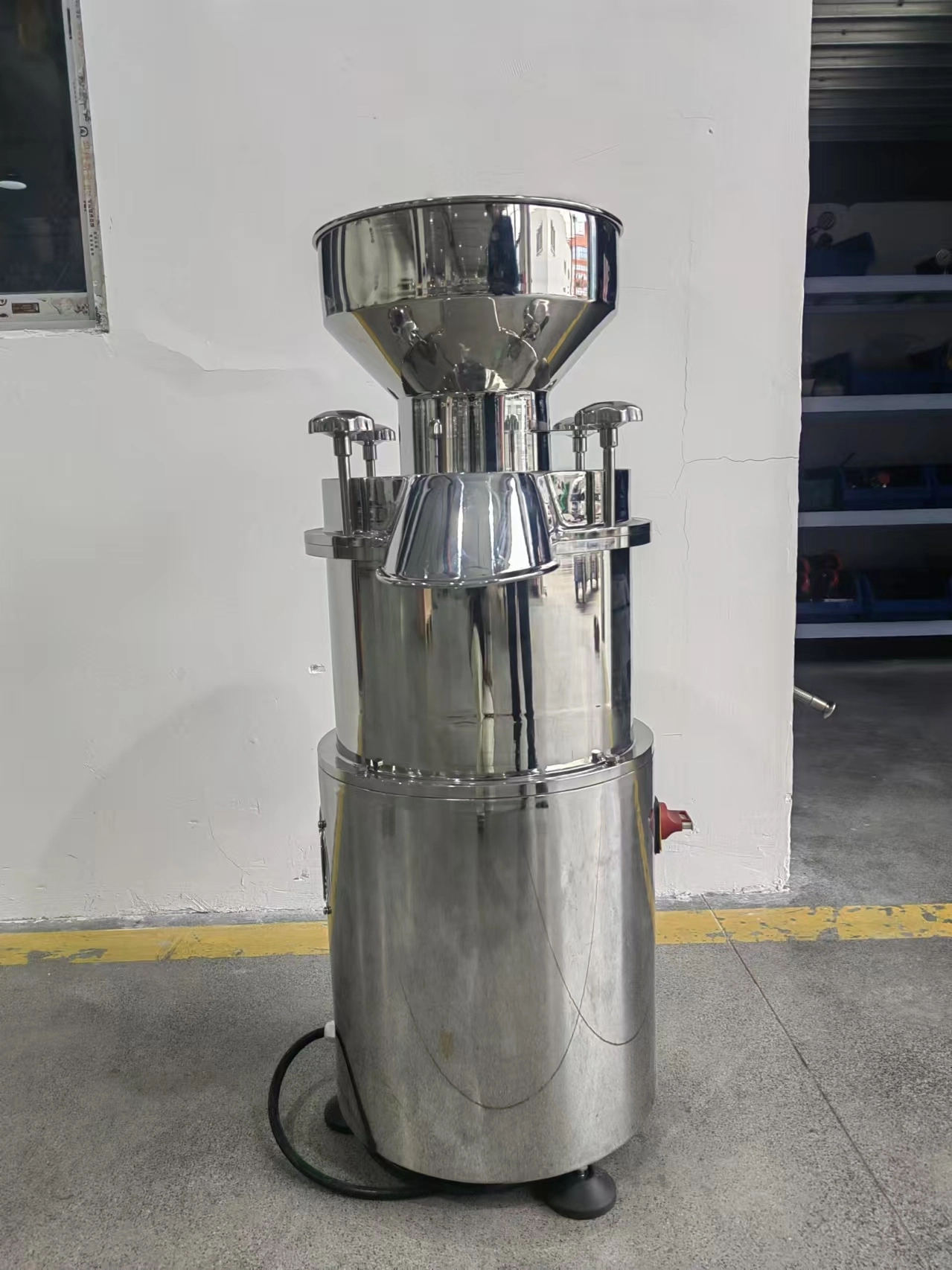

Multi functional soft capsule crusher
Equipment Introduction:
The UN-7 model is the latest generation capsule medicine recycling machine independently developed by our company. It adopts our patented cutting and crushing technology and integrated centrifugal separator, with a compact structure, stable performance, fast crushing, and high recovery rate. The overall product is refined from high-quality stainless steel, with a beautiful appearance, bright and smooth finish, and easy cleaning. It is an environmentally friendly and energy-saving capsule production equipment that turns waste into treasure and promotes recycling.
Equipment parameters:
1. Material: 304;
2. Main configuration: Capsule automatic separation device, filtration device, feeding hopper, liquid outlet, waste outlet, motor 1.1 KW；
3. Features: Through the capsule automatic separator, the capsules can be cut, crushed, and centrifuged for automatic filtration of the medicine solution, and the waste rubber can be automatically discharged from the waste outlet. During the operation of the machine, internal and external isolation is implemented, and the entire work process is completed in one go, effectively preventing the problem of cross contamination of medication and meeting the requirements of GMP hygiene standards and specifications;
4. Work ability: 60KG per hour, with a liquid recovery rate of ≥ 90% for oily suspensions and around 80% for suspensions;
5. External drawing of endoscopic surface;
6. Size of crushed pills: Small knives can crush pills with a diameter of 4-6mm, while conventional knives can crush pills with a diameter of 6-8mm. Other pill sizes need to be customized
Core features:
Adopting a cutting and crushing+centrifugal separation integrated structure, the crushed material is discharged from the upper outlet after crushing, and the liquid medicine automatically flows out from the lower outlet, completing the process in one go
Capable of processing capsules and mesh adhesive simultaneously, one machine can be used for multiple purposes
The whole machine complies with GMP hygiene standards, and the internal and external isolation design prevents drug contamination
Automatic discharge, no need for manual dumping of crushed materials, reducing labor intensity
The overall material is made of high-quality stainless steel, which is easy to clean
|
Reference standards |
The equipment shall be designed, manufactured, and inspected in accordance with the "Steel Atmospheric Pressure Vessels"; |
||
|
Product Name |
Liquid Powder Grinding and Recycling Machine |
||
|
Product Model |
UN-7 |
work ability |
60KG/H |
|
Equipment material |
304 |
Motor power |
1.1KW 380V 50HZ |
|
surface treatment |
Endoscopic external drawing |
Drug recovery rate |
Oil content ≥ 90% suspension 80% |
|
Recycling pill type |
Conventional knives can crush pills with a diameter of 6-8MM, while small knives can crush pills with a diameter of 4-6MM |
||
|
Overall dimensions |
φ420x1100mm |
||
|
Technical advantages |
1. The overall product is refined from high-quality stainless steel, with a beautiful appearance, bright and smooth finish, and easy cleaning. It is an environmentally friendly and energy-saving capsule production equipment that turns waste into treasure and promotes recycling. 2. Through the capsule automatic separator, the capsules can be cut, crushed, and centrifuged to automatically filter the medicinal solution, and the waste rubber can be automatically discharged from the waste outlet. 3. During the operation of the machine, internal and external isolation is implemented, and the entire work process is completed in one go, effectively preventing the problem of cross contamination of medication and meeting the requirements of GMP hygiene standards. |
||
Equipment selection suggestions
Recommended solutions for demand scenarios
Recycling of Soft Capsule Waste Pills and Mesh Adhesive Liquid UN-7 (Existing Mature Products, Recovery Rate>90%)
Reference patent CN111250514B scheme for mixed recycling of soft and hard capsules
A simple tray type recycling device for collecting residual liquid medicine on the production line
Due to limited budget, manual or semi-automatic solutions can be considered for handling small amounts
