Origami series automatic Instruction manual, A4 paper folding machine
The automatic paper folding machine is a newly developed small desktop paper folding machine, suitable for folding paper in various ways. The machine has a reasonable structure and uses large rubber wheels to feed paper, with accurate sheet division, stable performance, easy operation, and high efficiency. It is widely used for large-scale folding of product manuals, official documents, and business letters.
According to the working principle and structure, origami machines are mainly divided into the following categories, and you can choose according
to your specific needs:
1. Fence style
Working principle: The paper is fed into the folding fence through a high-speed rotating rubber roller, and after hitting the stopper at the top, it bends and enters the folding roller to complete the folding.
Features and applicable scenarios: fast speed, high efficiency, and diverse folding methods. Suitable for folding most commercial printed materials, such as product manuals, letters, and bills. But it is sensitive to the thickness and smoothness of the paper, and is not suitable for folding paper that is too thin or too soft
2. Knife style
Working principle: After the paper is positioned, the folding knife moves downward to press the paper into the gap of the rotating folding roller to complete the folding.
Features and Applicable Scenarios: High folding accuracy, tightly pressed creases, and wide adaptability to paper. Suitable for large format paper or thinner, softer paper, commonly used for folding books, magazines, and magazines. But the disadvantage is that due to mechanical inertia limitations, the speed is relatively slow.
3. Grid knife hybrid type
Working principle: Combining the advantages of fence style and knife style, the first few folds use fence style to pursue high speed, and the last few folds use knife style to ensure accuracy.
Characteristics and Applicable Scenarios: Combining speed and stability, it is the mainstream choice for book printing factories and large binding workshops
Core Features
Four fold plate design: supports 12 or more folding methods such as fold in half, inner triple fold, outer triple fold, Guanyin fold, double fold, etc. It can complete multiple folds and form in one go.
Strong adaptability: The paper feeding system is adjustable and can handle 35g thin paper (such as instructions) and 125g thick paper (such as cards), with a wide range of applications.
Easy to operate: adopting stepless speed regulation, the speed can be adjusted at any time. Equipped with large rubber wheels for paper feeding, stable paper separation, reducing double or multiple sheet feeding.
Lightweight structure: desktop design, weighing only about 38-45kg, easy to move and install, suitable for fast printing centers and enterprise offices.

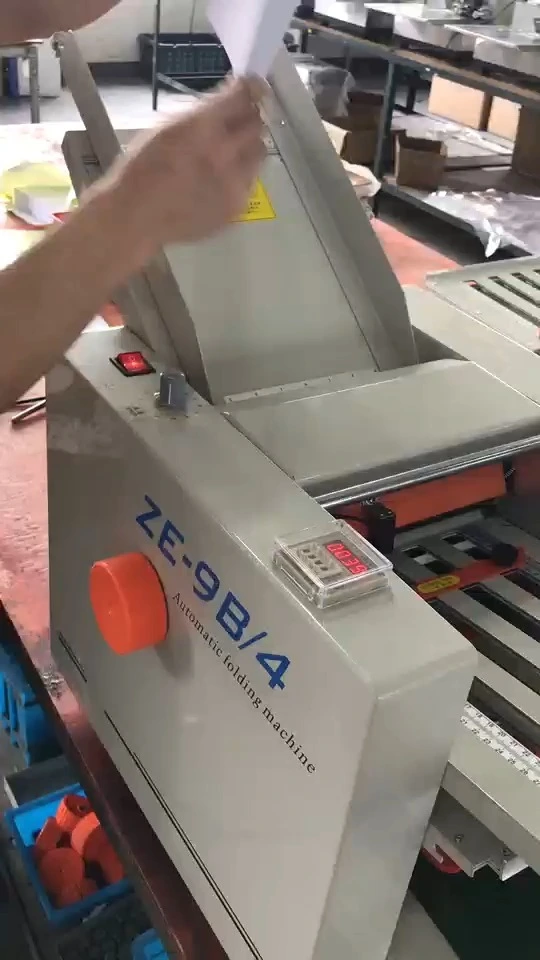

| Model: | ZE-9B/4 |
| Power supply voltage: | AC 220/50(V/Hz) |
| Power: | 70(W) |
| Number of folds: | 4 |
| Maximum paper size: | 210 × 620(mm) |
| Minimum paper size: | 50 × 70(mm) |
| Thickest paper size: | 175(g) |
| Minimum paper size : | 40(g) |
| Maximum linear speed : | 80 (m/min) |
| Dimensions (mm): | 1020 × 430 × 580 |
| Net weight: | 43.5 (kg) |
