Main Application

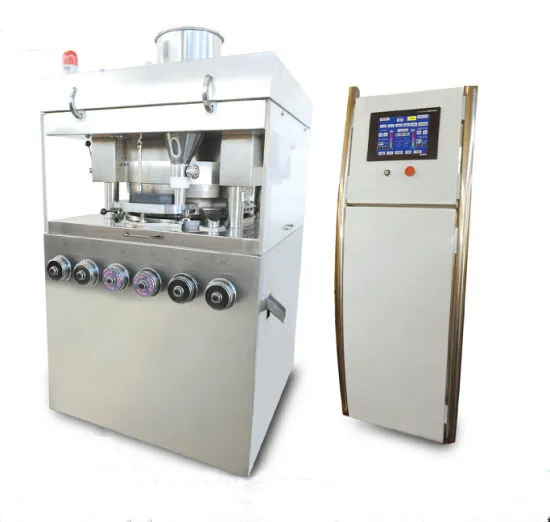

ZPG-55A Updated Sub-high Speed Rotary Tablet Press is a new generation sub-speed tablet press, which is an upgrade of sub high speed tablet press. This equipment is designed and manufactured with rich experiences in tablet press manufacturing of more than 40 years and modern design ideas, which is applicable for large-scale and intensive tablet production. This machine could press round and abnormal shape tablets of various specifications, and its output configuration and functions have been improved to a higher level than the traditional tablet press. The capacity and pressure of this series sub high speed rotary tablet press are very high, its pre-pressure is consecutively adjustable, its structure is compact, it's simple to operate and maintain and it runs reliably. It is applicable for extensive materials. Its running and operating cost is low, with favorable performance price ratio advantage.
Characteristics
1. Comply with GMP requirements.
2. The high production efficiency could satisfy the demands of large batch production.
3. It's equipped with forced feeding device, various forms of impellors could satisfy demands of different materials to ensure the feeding precision.
4. High pressure, the pre-pressure is consecutively adjustable, which extends the pressing duration. The machine runs smoothly and could press the materials difficult to mould.
5. The tablet pressing chamber is dead angle free for 360° , special installation means are adopted for the tablet discharging mechanism, the under guide track and under roller, it's convenient to operate, dismantle and clean.
6. The special oil-resistant and dustproof system has avoided punching blockage and has increased the damp structure.
7. An independent view window with high definition is designed for the machine.
8. Controlled by PLC and man-machine interface, and it's simple to operate and intuitionistic.
9. The electric control cabinet is independent(separated from tablet press), perfect dustproof effect
| Model | ZPG-55A | ZPG-51A | ZPG-41A | |
| Die model | ZP | IPT | IPT | |
| Max. capacity (tablets/hour) | 260,000 | 220,000 | 160,000 | |
| Max. tablet diameter (mm) | 13 | 19 | 25 | |
| Max. filling depth (mm) | 18 | 18 | 18 | |
| Max. tablet thickness (mm) | 8 | 9 | 9 | |
| Max.main pressure (kN) | 120 | |||
| Max. pre-pressure (kN) | 20 | |||
| Main motor power (kW) | 7.5 | |||
| Dimensions (Length mm× Width,mm) | 1220×1120 | |||
| Height(mm) | Including hopper | 1850 | ||
| Touch screen cantalever | 1980 | |||
| Weight(kg) | 2000 | |||
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
Main Application
ZPG-55A Updated Sub-high Speed Rotary Tablet Press is a new generation sub-speed tablet press, which is an upgrade of sub high speed tablet press. This equipment is designed and manufactured with rich experiences in tablet press manufacturing of more than 40 years and modern design ideas, which is applicable for large-scale and intensive tablet production. This machine could press round and abnormal shape tablets of various specifications, and its output configuration and functions have been improved to a higher level than the traditional tablet press. The capacity and pressure of this series sub high speed rotary tablet press are very high, its pre-pressure is consecutively adjustable, its structure is compact, it's simple to operate and maintain and it runs reliably. It is applicable for extensive materials. Its running and operating cost is low, with favorable performance price ratio advantage.
Characteristics
1. Comply with GMP requirements.
2. The high production efficiency could satisfy the demands of large batch production.
3. It's equipped with forced feeding device, various forms of impellors could satisfy demands of different materials to ensure the feeding precision.
4. High pressure, the pre-pressure is consecutively adjustable, which extends the pressing duration. The machine runs smoothly and could press the materials difficult to mould.
5. The tablet pressing chamber is dead angle free for 360° , special installation means are adopted for the tablet discharging mechanism, the under guide track and under roller, it's convenient to operate, dismantle and clean.
6. The special oil-resistant and dustproof system has avoided punching blockage and has increased the damp structure.
7. An independent view window with high definition is designed for the machine.
8. Controlled by PLC and man-machine interface, and it's simple to operate and intuitionistic.
9. The electric control cabinet is independent(separated from tablet press), perfect dustproof effect
| Model | ZPG-55A | ZPG-51A | ZPG-41A | |
| Die model | ZP | IPT | IPT | |
| Max. capacity (tablets/hour) | 260,000 | 220,000 | 160,000 | |
| Max. tablet diameter (mm) | 13 | 19 | 25 | |
| Max. filling depth (mm) | 18 | 18 | 18 | |
| Max. tablet thickness (mm) | 8 | 9 | 9 | |
| Max.main pressure (kN) | 120 | |||
| Max. pre-pressure (kN) | 20 | |||
| Main motor power (kW) | 7.5 | |||
| Dimensions (Length mm× Width,mm) | 1220×1120 | |||
| Height(mm) | Including hopper | 1850 | ||
| Touch screen cantalever | 1980 | |||
| Weight(kg) | 2000 | |||
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
