Uphill Tablet Deduster
Main Description

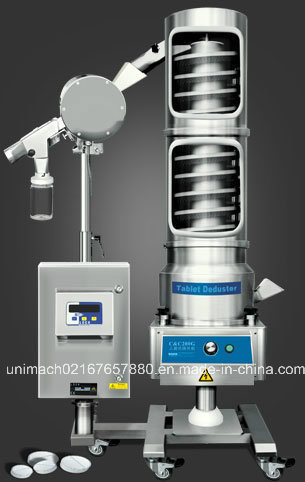

SZC-200C Uphill Tablet Deduster I s a special equipment to wipe out burr and dust of tablet whilst going up way. It can be connected with tablet press and metal detection systems. 316L stainless steel are used for all metal parts contacting tablets. Design of GMP.
Key Features
1). Body and cover of the machine take building-block design. Height of outlet is easy to adjust.
2). Parts in contact with medicine all made of 316L stainless steel. No blind spot during whole machine cleaning. Meet cGMP demands.
3). Fast-joint system to ensure safe and quick disassembly and assembly.
4). Outstanding efficiency can make mass production of Φ 3-Φ 35mm all-kind-shape tablet.
5). New design motor driver to make machine run more smoothly with lower noise.
model | SZS-200 |
| Max.tablet Capacity(tablets/h) | 1,000,000(Φ8×3mm) |
| Rated Power | 150W |
De-dusting distance | 6.2m |
Maximum diameter of the tablet | Φ25mm |
Power supply | 110V/220V 50Hz/60 Hz 1P |
Compressed air | 0.1m³/min,0.1MPa |
Vacuum | 2.5 m³ /min,-0.1MPa |
Noise | <75(dB(A)) |
Dimension | 500×550×1350-1500(mm) |
Weight | 70kgs |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
