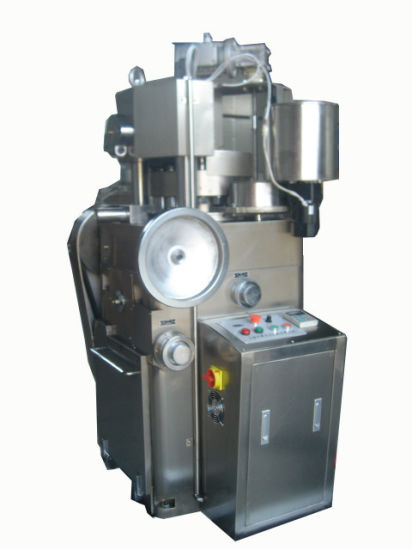

ZP-17HB High Efficiency Rotary Tablet Press
Main application
ZP-17HB Tablet press is the latest Research and design one machine. The machine is used for making the powder into tablet. The machine could make different shape and size tablet. Such as the round tablet, oval tablet, ring tablet... This machine mainly used in Pharmaceutical industry, Food and chemical industry.
Features
Frequency Conversion used in the machine. The speed could be adjusted
Machine with big pressure, work stability
Ransmitting system is sealed in the oil box under the working area, which work separately. No pollution and easy to send out heat and resist grinding
Equipped with transparent window which could help to observe the status of pressing tablet. Transparent window could be fully opened, machine easy to clean and maintenance. All monitors and operating components work well together
Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
| Model | ZP-17HB |
| Dies(sets) | 17 |
| Max. Pressure (kn) | 120 |
| Max. dia. of tablet (mm) | 36 |
| Max. Depth of fill (mm) | 18-30 |
| Max. Thickness of largest table (mm) | 8-15 |
| Turret speed (r/min) | 10-25 |
| Length of up and down punch pole (mm) | 40mm |
| Length of up punch pole (mm) | 175mm |
| Length of down punch pole (mm) | 180mm |
| Diameter of middle mould (mm) | 52mm |
| Production capacity (pcs/h) | 25500 |
| Motor power(Kw) | 7.5 |
| Overall size(mm) | 900*800*1640 |
| Weight(Kg) | 1500 |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
