Main Application

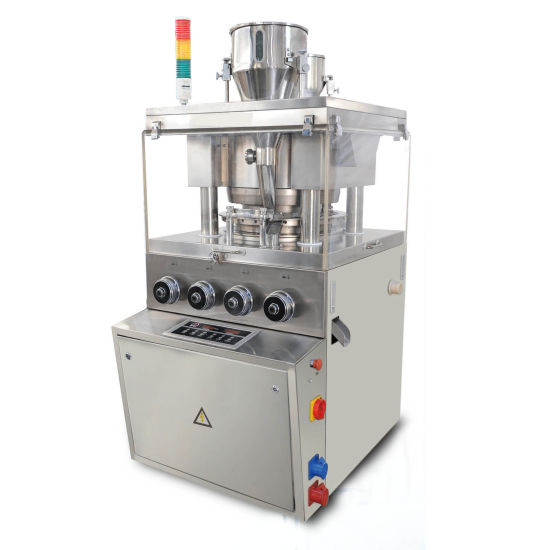

This machine is the latest equipment developed by our company for tablet press of salt, charcoal industry. It's also applicable for chemical, food and other industries.
Characteristics
1. This machine is particularly applicable for the pressing of large diameter and large filling amount tablets.
2. The specially designed forced feeder could press pure powder materials like charcoal powder with light weight and small density.
3. The specially designed auxiliary equipment could realize automatic feeding and automatic tablet discharging.
4. The human-based design enables easier cleaning and maintenance.
5. The drive system is sealed in the worm gear case at the bottom of the host machine, which is a completely isolated independent part. This configuration could avoid mutual contamination between the machine and the drive system and could fully lubricate the drive system and could reduce noise and wearing.
6. The special installation structure enables the replacement and repairing of the under punching guide track and the under roller fast and convenient.
| Model | ZPT21 | ZPT25 |
| Stations | 21 | 25 |
| Max.tablet pressing force (kN) | 100 | 100 |
| Max.tablet pressing diameter (mm) | 40 | 32 |
| Max.filling depth(mm) | 30 | 30 |
| Max.tablet pressing thickness (mm) | 14 | 14 |
| Max.production capacity (tablets/hour) | 50,000 | 60,000 |
| Dimensions (mm) | 1100x940x1800 | 1100x940x1800 |
| Motor (kW) | 7.5 | 7.5 |
| Main machine weight (kg) | 2000 | 2000 |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
