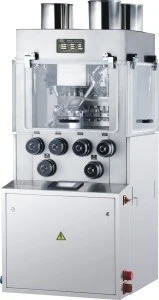

Zpw31 Muti-Functional Rotary Tablet Press Machine
Application:
This machine has a wide scope of application. It is applicable not only to the the pharmaceutical and foodstuff industry but also the chemical, ceramic, electronic and battery industry for pressing the various kinds of granular materials into tablets.
The functions of the machine are complete. Besides producing the round shape tablets, it can also produce irregular, ring or double engraved tablets. It can not only produce single layer tablets but also double layers or even triple- layers tablets to satisfy the different demands of the customers.
Features:
The machine conforms to GMP requirements. The tablet-pressing compartment is separated from the driving mechanisms, in order to prevent the contamination of the pharmaceutical.
All the parts that will be in contact with the pharmaceutical materials are made of stainless steel or zinc plated in the surface, nontoxic and abrasion and corrosion resistant.
By adopting PLC programmable controller, the main functions, production data and malfunctions of the tablet pressing are monitored and controlled.
By adopting inverter for the speed adjustment, the adjustment of speed is stepless and reliable with a wide range. Meanwhile, motor with frequency inverter has been selected, to ensure the constant power and speed adjustment with consistent torque, meeting the requirement on the torque with in the stipulated range for the rotary speed of the press.
| Model | ZPW31 | |
| Number of Station | 31 | |
| Tooling standard | B | |
| Max Main Pressure(KN) | 80 | |
| Max Tablet Diameter(mm) | Round Tablet | 18 |
| Irregular Tablet | 19 | |
| Max Filling Depth(mm) | 18 | |
| Max Tablet Thickness(mm) | 7 | |
| Max Turret Speed(r/min) | 35 | |
| Max Production Capacity(pcs/h) | 65100 | |
| Motor Power(kw) | 4 | |
| Overall Size(mm) | 1050*900*1880 | |
| Machine Weight(kg) | 2000 | |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
