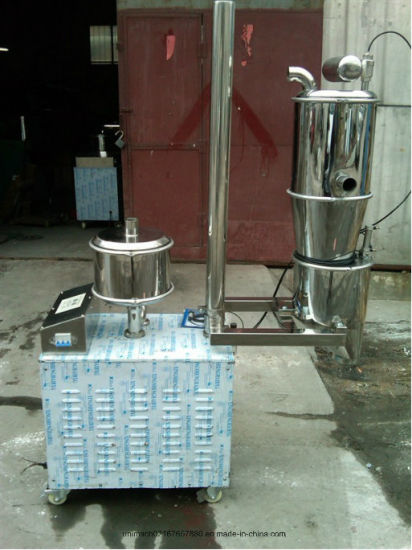

Electric Vacuum Loading Machine 2

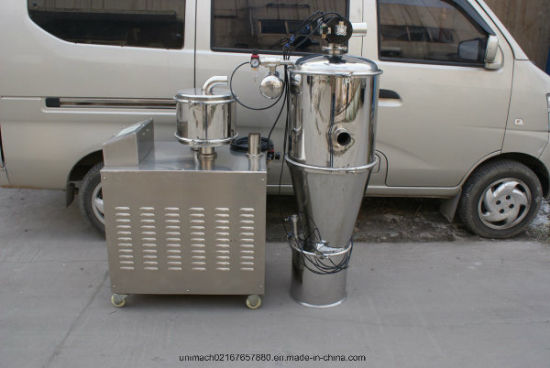

Electric Vacuum Loading Machine 3

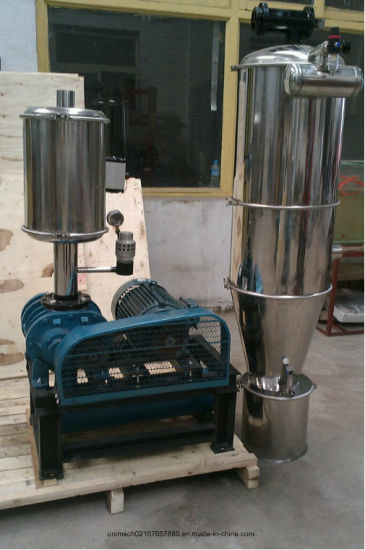

Electric Vacuum Loading Machine 4
Electric Vacuum Loading Machine 1
Electric Vacuum Loading Machine 2
Electric Vacuum Loading Machine 3
Electric Vacuum Loading Machine 4

Electric Vacuum Loading Machine


    no product data.

    Go to homepage

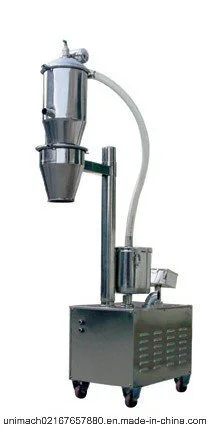

    ZKS Series Electric Vacuum Loading Machine
    Electric Vacuum Loading Machine
    Model ZKS Vacuum loading machine is specially designed for   feeding   granules and powder to   the hopper of   higher position machine,such as for packing machine,   injection molding machine   ,pulverizer,vibration sifter and etc.   Also the vacuum loading machine can feeding powders into mixing machine(such as V blender,rocking mixer,3D mixer,ribbon blender,double cone blender and etc).So it save labor and also cost,meanwhile the problem of dust is solved when feeding powder.
      It   consists of   stainless steel material suction nozzle,   feeding soft   pipe,vacuum hopper,PE(stainless steel 316L) filter,compressed air reverse-blowing device,vacuum pump(oil and water free) and material   level   automatic controller and etc.
      Utilizing the vortex vacuum pump, the feeding nozzle and the whole system lie in the vacuum condition. Powder together with the air is absorbed into the nozzle, forming the feeding air current which go through feeding pipe to the hopper.
      There occurs the separation between air and feeding material. The separated materials enter the receiving equipment.
    Technical specifications:
    Model Motor powder(kw) feeding capacity(kg/h)
    ZKS-1 1.5 400
    ZKS-2 2.2 600
    ZKS-3 3 1200
    ZKS-4 5.5 2000
    ZKS-5 4 3000
    ZKS-6 5.5 4000
    ZKS-7 5.5 6000

    Electric Vacuum Loading Machine

    Electric Vacuum Loading Machine

    Electric Vacuum Loading Machine

    Packaging & Shipping

     1.Nomally shipping steps:


    2.Our packing and shipping:


    Our Services


         Pre-Sales Service:


             * Inquiry and consulting support.


             *Quickly reaction.


              *Factory inspection available anytime.



          After-Sales Service:


             *Prompt technical support


            *Engineers available to service machinery overseas


            *Installation &commissioning,good training for customers.



    Our customer






    Company Information



     Q1.What's your delivery method?

     A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.


    Q2.What products can you provide?

    A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.


    Q3. What's the payment terms?

    A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.


    Q4.How do you ensure your product quality?

    A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.


    Q5:Does the machine power voltage meet buyers' factory power source?

    A5: We can do it as your request.


    Q6: Is it difficult to install the machine ?

    A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

    For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

    You will get videos and instructions about installation of machine from us.
