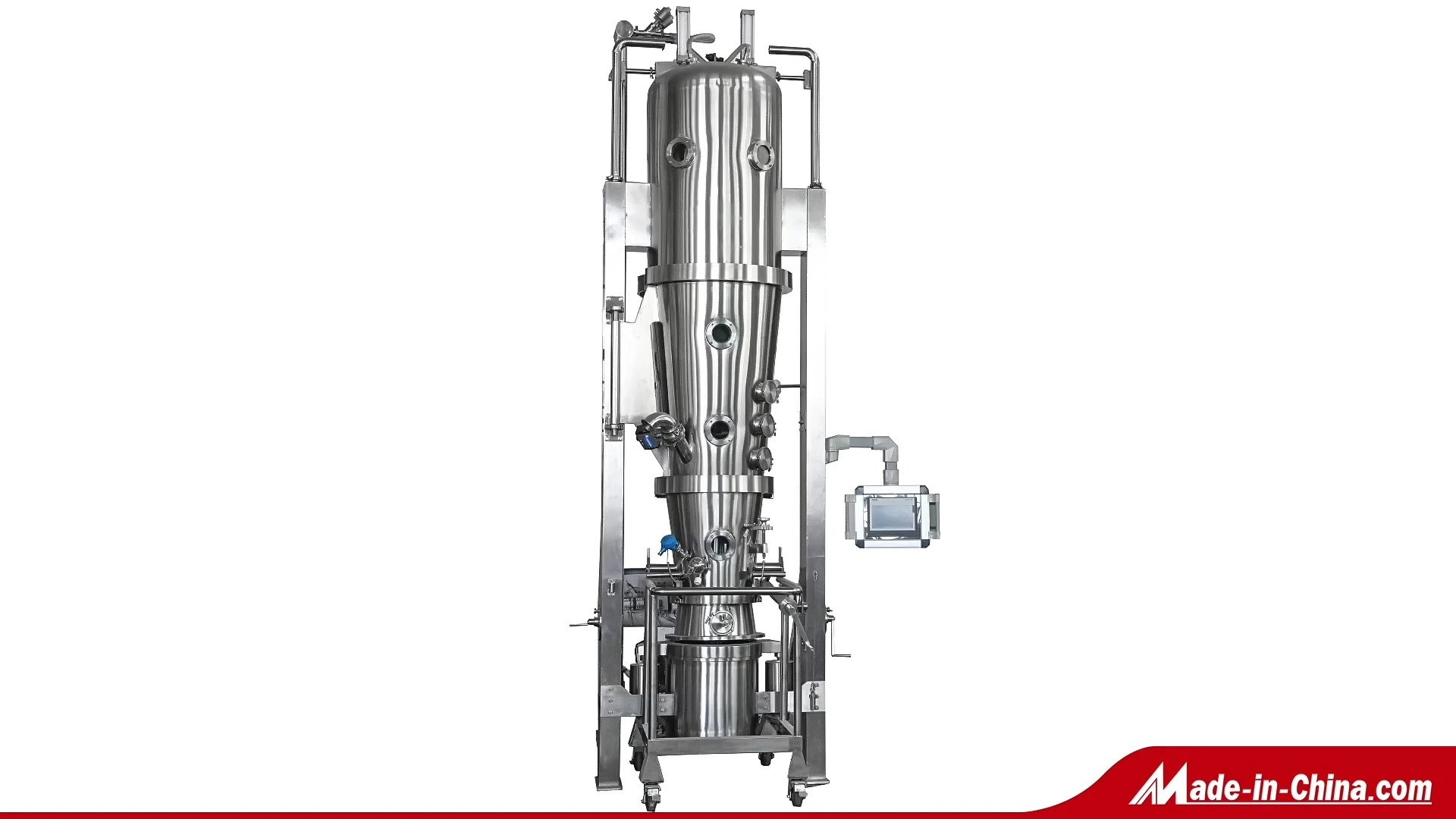

FG-30 Fluid-Bed Dryer

    oops...!

    no product data.

    Go to homepage

    National new product recommendation company.

    On the basis of “fully mixed” fluidized bed drying and granulation, our company has developed a “regulated flow” fluidized bed for “bottom spray” and “tangential jet” granulation palletizing and coating. More importantly, we have patents, technology and achievements.

    We improve the selection, design, manufacture and application of everything from experiments to processes, from technology to related equipment.


    1.The name and type of the equipment.

    FG-30 Fluid-Bed dryer


    2. Function feature and the principle of action.

    This machines is suitable for drying for powder and granules.

    The principle of action is based on: Put the raw material  into the fluid bed. The cold air is drawn into the fluid bed through the pre filters and passes through the heating chamber behind the main machine, heated to the desired temperature by the heater. The material is fluidized in the fluid bed regularly .  The evaporating moisture is drawn out by the fan.


    3. The main technical characteristics.



    Number Item Unit Model/specification
    1 Volume L 100
    2 Capacity Kg/batch 30
    3 Power of fan kw 11
    4 pressure of compressed air  Mpa  0.6
    5 Consumption of compressed air  M3/min 0.6
    6 Steam heater 33.75


    4.The basic options which are included into the complete set.

    Name Material Specification Origin
    Inlet air system Cabinet SS304 δ=1.5mm China
    pre filter
    G4 China
    Middle filter Non-woven cotton F8 China
    Steam heater Stainless steel 33.75㎡ China
    Steam valve
    ¢25 China
    Drain water valve
    ¢25 China
    Heat cabinet Stainless steel δ=1.5/2   China
      HEPA Filter paper H13 China
    200℃
    Inlet air temperature sensor
    PT100 China
    DOP for HEPA
    before,2pcs China
    Inlet air pipe   SS304 δ=1.5mm China
    Bottom chamber Flange SS304 δ=18mm China
    Bottom chamber SS304 δ=3mm China
    Drainage device SS304 Form a complete set China
    Air sealing Silicon rubber Form a complete set China
    CIP nozzle SS304 1pc China
    Top air cylinder Air TAC SU63×100FB  Taiwan
     Lift-down section SS304
    China
    Fluid bed Container SS304(SS316L as contact material) δ=3mm China
    Temperature sensor
    Pt100 China
    flange SS304 δ=18mm China
    Inspection window armoured glass Φ120 China
    Sampler SS304(SS316L as contact material)
    China
    screen SS316L
    China
    frame SS304
    China
    Wheel
    Φ150 China
    Two as fix
    Two as moveable
    Middle chamber Middle Chamber SS304(SS316L as contact material) δ=3mm China
    Flange SS304 δ=18mm China
    Inspection window armoured glass Φ120 China
    CIP nozzle SS304 1pc China
    Nozzle port SS304 3 holes in future China
    Light

    China
    Top chamber Top Chamber SS304 δ=3mm China
    Flange SS304 δ=18mm China
    Shaking air cylinder Air TAC
    Taiwan
    (shiking time and frenquency controlled by PLC)
    Inspection window armoured glass Φ120 China
    2pcs
    Cloth bag frame SS304
    China
    Lift-lower for bag SS304 2pcs China
    Anti-drop for frame
    2pcs China
    Cloth bag filter CCP bag anti static
    China
    CIP nozzle SS304 2pcs China
    Side or top explosion relief port SS304
    China
    Upright post Cover stainless steel
    China
    Exhaust air system exhaust air pipe SS304 δ=1.5mm China
    Exhaust air elbow SS304 δ=1.5mm China
    Exhaust air temperature sensor
    PT100 China
    Flap air cylinder Air TAC SU63×250 Taiwan
    Exhaust fan
    11KW China
    Vibration absorber
    4pcs China
    Silencer Carbon steel
    China
    CIP system CIP cleaning nozzle for filter chamber Stainless steel Φ=25, 2pcs. Each for left and right China
    CIP cleaning troll ball for expansion chamber Stainless steel Φ=25
    CIP cleaning troll ball for bottom chamber Stainless steel Φ=25
    Electrical control system control cabinet SS304
    China
    Main Eletrical component

    Siemens
    PLC

    Siemens
    Pressure monitoring

    China
    Touch screen Kinco 7″
    China
    Safe and alam Inlet air termperature too high/too low alarms

    China
    Compressed air too low/too high pressure alarms

    China
    emergency

    China
    The trolley in place

    China
    Pneumatic part Air TAC

    Taiwan


    5.Easy damaged part (1 years)


    Item specification Number Place of production
    Bag filter Φ900 1 set China
    Compressure air pipe φ10×1.5 100m China
    silicon  sealing
    20m China
    Product temperature sensor
    3pcs China


    6. The basic units (project).

    The machine design: The material of coater is stainless steel SS304 and SS316L

    The heater is stainless steel steam heater.

    Display by touch-screen, controlled by Siemens PLC.

    Double collecting and filting bags system, remove dust complete.


    7. SERVICE AFTER SELL:

    Documentation:

    We will furnish test certificates for raw material like for SS304.and SS316L

    Also we will submit test certificates for all bought out items like motor and gear box.

    IQ, OQ documentation will be given as per standard format suggested by your company.

    Two copies of Operational manual with English will be given at the time of dispatch of machine.


    FAT&SAT(by client) will be executed

    All our machines guaranteed for trouble free performance for a period of 12 months from commissioning.


     Installation and service after sell for free for one year, the air ticket from china to Client’s and Client’s to china will for the buyer’s account.

    And the buyer should supply our engineer’s room and food!
