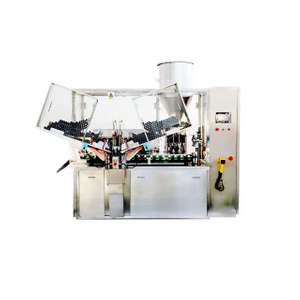

    High Quality Soft Tube Filling Sealing Machine
    4



    Characteristic:
    1. With 12 working stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of plumbum tube, ALU tube, plastic tube and laminated tubes. It is a multi-purpose machine.
    2. Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).
    3. Servo control makes it precise and convenient to adjust the filling amount by touch screen.
    4. According to the different length of the tube, height of tube chamber, tube hopper can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.
    5. The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.
    6. Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.
    7. Three-layer jacket instant heater with inside air heating, it won't damage the pattern outer wall of tube and achieves firm and beautiful sealing effect.

    Introduction:
    This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It's ideal equipment for plumbum tube, ALU tube, plastic tube and laminated tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.

    Model NF-60
    Filling speed 50pcs/min
    Suitable tube plastic tube, laminated tube, ALU tube, plumbum tube
    Diameter of tube φ10-φ50mm
    Length of tube Max. 220mm
    Filling volume range 5ml-250ml (Adjustable)
    Filling accuracy ≤±1%
    Motor power 1.1kw
    Heat seal power 3.0kw
    Working pressure 0.55-0.65Mpa
    Power supply 380V/220V
    Overall dimension(L*W*H) 2000*950*1900mm
    Weight 850kg


    Packaging & Shipping

     1.Nomally shipping steps:

     S45PNZ%`OL`M6O8H}V(SDJ

    2.Our packing and shipping:

    (4[KDGL_NF%E6%2]D`4JYP

    Our Services

     0OC}YRDYXP])TO]QMXZ48IJ

         Pre-Sales Service:



             * Inquiry and consulting support.



             *Quickly reaction.



              *Factory inspection available anytime.





          After-Sales Service:



             *Prompt technical support



            *Engineers available to service machinery overseas



            *Installation &commissioning,good training for customers.





    Our customer

     sd详情页-上海海彼--1定稿_03详情页-上海海彼--1定稿_06



    Certifications

    [$X~Z{0)[{$PW5F}H666N6M



    Company Information

    RX2]L7{%NOW0`YXF9~)M{_G



    FAQ

     Q1.What's your delivery method?

     A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



    Q2.What products can you provide?

    A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



    Q3. What's the payment terms?

    A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



    Q4.How do you ensure your product quality?

    A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



    Q5:Does the machine power voltage meet buyers' factory power source?

    A5: We can do it as your request.



    Q6: Is it difficult to install the machine ?

    A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

    For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

    You will get videos and instructions about installation of machine from us.
