Fluid bed granulator

Company Advantages

· Built with solid construction and select quality finishes, SUPM spray drying process pharmaceutical satisfies both the style and budget needs.

· With company philosophy of 'Quality comes first.', the product is guaranteed to meet the highest quality standards.

· The product is applicable in the industry with its compatible advantages.

National new product recommendation company.

On the basis of “fully mixed” fluidized bed drying and granulation, our company has developed a “regulated flow” fluidized bed for “bottom spray” and “tangential jet” granulation palletizing and coating. More importantly, we have patents, technology and achievements.

We improve the selection, design, manufacture and application of everything from experiments to processes, from technology to related equipment.

1.The name and type of the equipment.

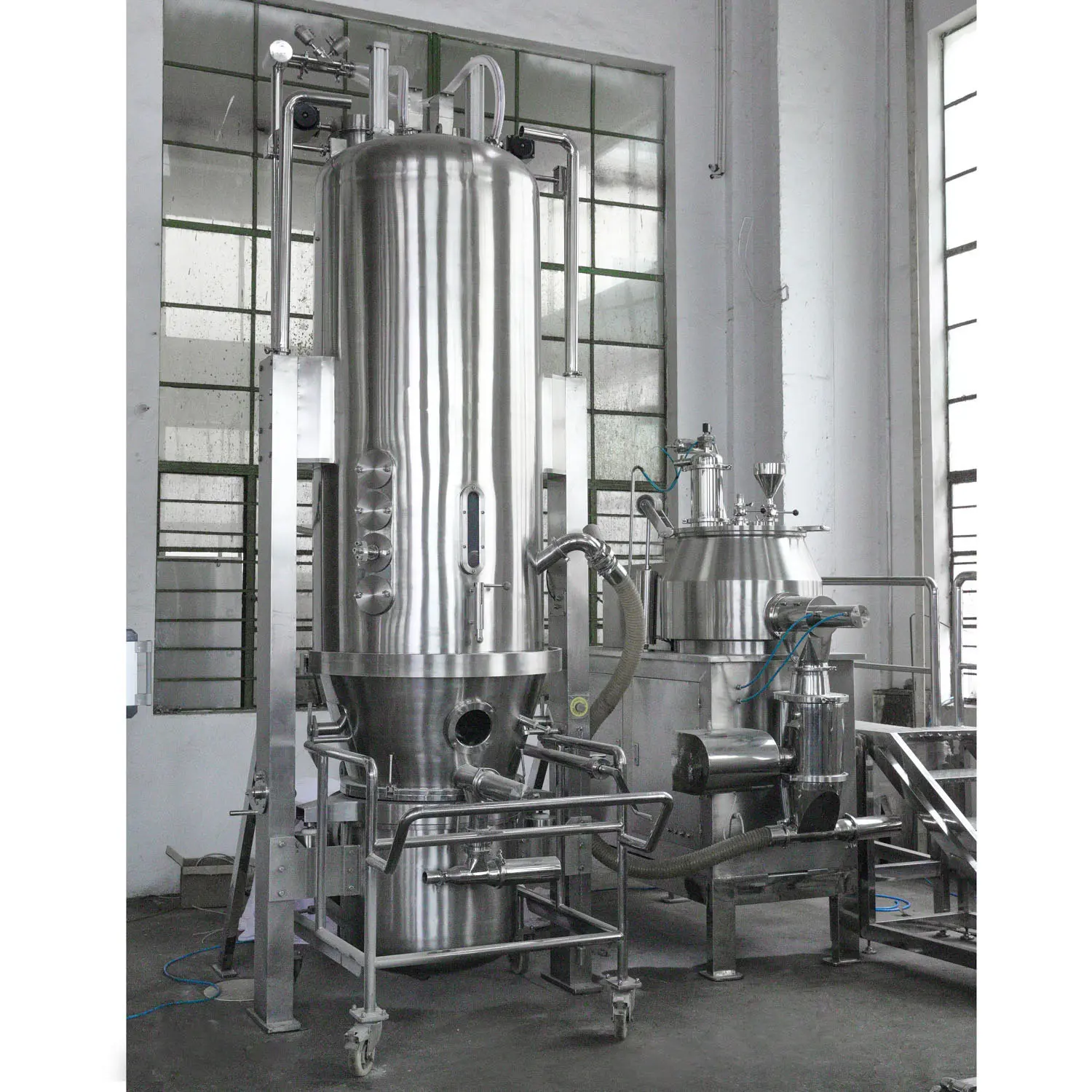

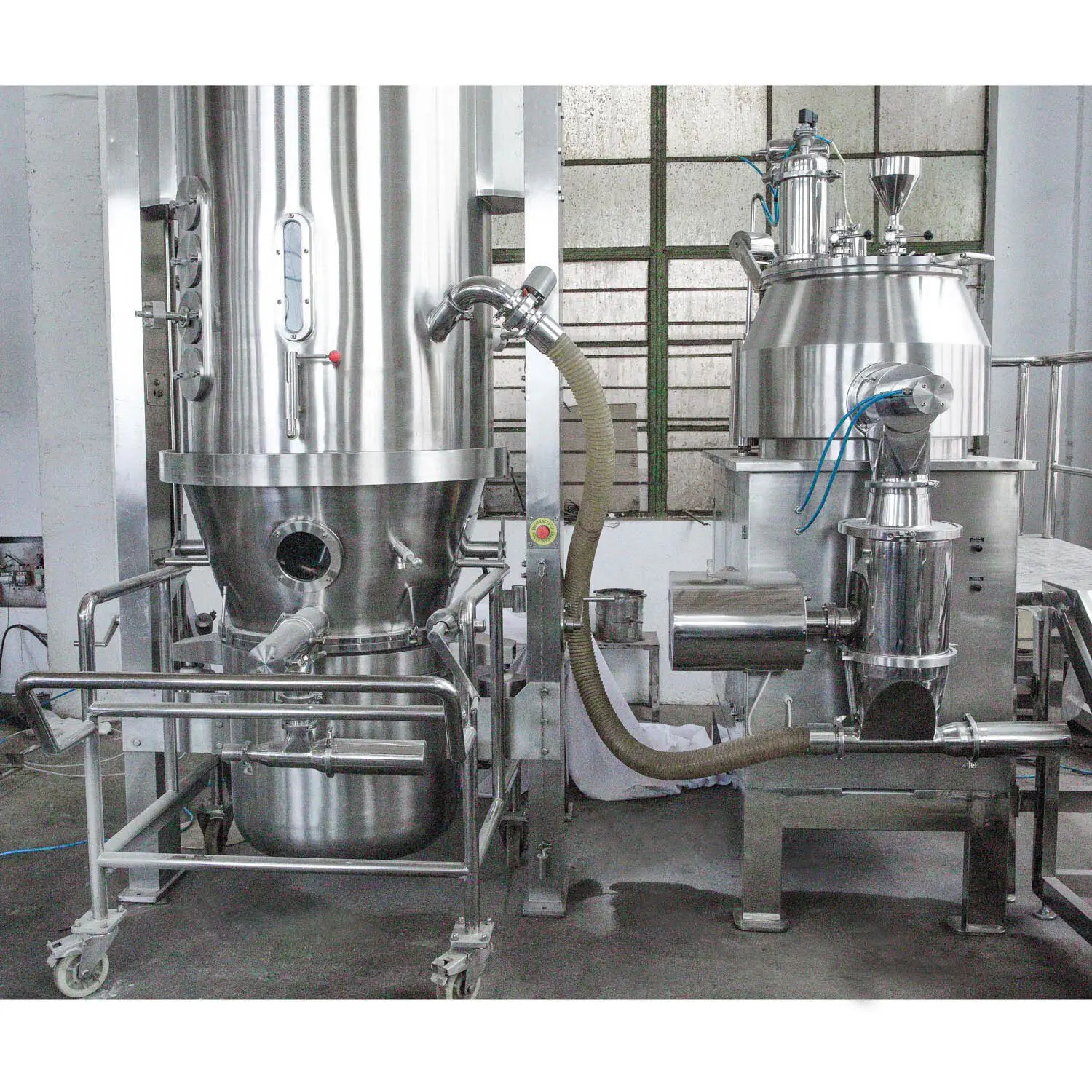

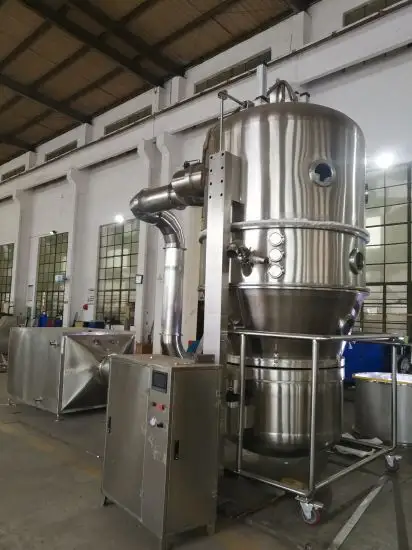

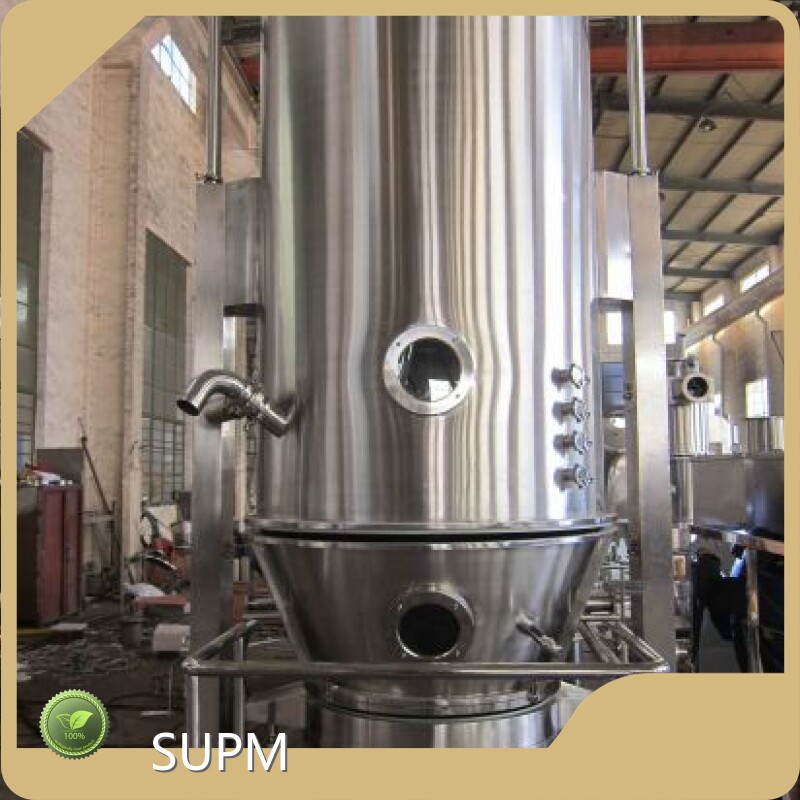

FG-30 Fluid-Bed drye SUPM Spray Drying Process Pharmaceutical - SUPM 7

2. Function feature and the principle of action.

This machines is suitable for drying for powder and granules.

The principle of action is based on: Put the raw material into the fluid bed. The cold air is drawn into the fluid bed through the pre filters and passes through the heating chamber behind the main machine, heated to the desired temperature by the heater. The material is fluidized in the fluid bed regularly . The evaporating moisture is drawn out by the fan.

3. The main technical characteristics.

Number	Item	Unit	Model/specification
1	Volume	L	100
2	Capacity	Kg/batch	30
3	Power of fan	kw	11
4	pressure of compressed air	Mpa	0.6
5	Consumption of compressed air	M3/min	0.6
6	Steam heater	㎡	33.75

4.The basic options which are included into the complete set.

Name		Material	Specification	Origin
Inlet air system	Cabinet	SS304	δ=1.5mm	China
	pre filter		G4	China
	Middle filter	Non-woven cotton	F8	China
	Steam heater	Stainless steel	33.75㎡	China
	Steam valve		￠25	China
	Drain water valve		￠25	China
	Heat cabinet	Stainless steel	δ=1.5/2	China
	HEPA	Filter paper	H13	China
	HEPA	Filter paper	200℃	China
	Inlet air temperature sensor		PT100	China
	DOP for HEPA		before，2pcs	China
	Inlet air pipe	SS304	δ=1.5mm	China
Bottom chamber	Flange	SS304	δ=18mm	China
	Bottom chamber	SS304	δ=3mm	China
	Drainage device	SS304	Form a complete set	China
	Air sealing	Silicon rubber	Form a complete set	China
	CIP nozzle	SS304	1pc	China
	Top air cylinder	Air TAC	SU63×100FB	Taiwan
Lift-down section		SS304		China
Fluid bed	Container	SS304(SS316L as contact material)	δ=3mm	China
	Temperature sensor		Pt100	China
	flange	SS304	δ=18mm	China
	Inspection window	armoured glass	Φ120	China
	Sampler	SS304(SS316L as contact material)		China
	screen	SS316L		China
	frame	SS304		China
	Wheel		Φ150	China
			Two as fix
			Two as moveable
Middle chamber	Middle Chamber	SS304(SS316L as contact material)	δ=3mm	China
	Flange	SS304	δ=18mm	China
	Inspection window	armoured glass	Φ120	China
	CIP nozzle	SS304	1pc	China
	Nozzle port	SS304	3 holes in future	China
	Light			China
Top chamber	Top Chamber	SS304	δ=3mm	China
	Flange	SS304	δ=18mm	China
	Shaking air cylinder	Air TAC		Taiwan
	(shiking time and frenquency controlled by PLC)	Air TAC		Taiwan
	Inspection window	armoured glass	Φ120	China
	Inspection window	armoured glass	2pcs	China
	Cloth bag frame	SS304		China
	Lift-lower for bag	SS304	2pcs	China
	Anti-drop for frame		2pcs	China
	Cloth bag filter	CCP bag anti static		China
	CIP nozzle	SS304	2pcs	China
	Side or top explosion relief port	SS304		China
	Upright post	Cover stainless steel		China
Exhaust air system	exhaust air pipe	SS304	δ=1.5mm	China
	Exhaust air elbow	SS304	δ=1.5mm	China
	Exhaust air temperature sensor		PT100	China
	Flap air cylinder	Air TAC	SU63×250	Taiwan
	Exhaust fan		11KW	China
	Exhaust fan		11KW	China	Vibration absorber	4pcs	China
	Silencer	Carbon steel		China
	CIP system	CIP cleaning nozzle for filter chamber	Stainless steel	Φ=25, 2pcs. Each for left and right	China
CIP cleaning troll ball for expansion chamber		Stainless steel	Φ=25
CIP cleaning troll ball for bottom chamber		Stainless steel	Φ=25
Electrical control system	control cabinet	SS304		China
	Main Eletrical component			Siemens
	PLC			Siemens
	Pressure monitoring			China
	Touch screen	Kinco 7″		China
Safe and alam	Inlet air termperature too high/too low alarms			China
	Compressed air too low/too high pressure alarms			China
	emergency			China
	The trolley in place			China
Pneumatic part	Air TAC			Taiwan

5.Easy damaged part (1 years)

Item	specification	Number	Place of production
Bag filter	Φ900	1 set	China
Compressure air pipe	φ10×1.5	100m	China
silicon sealing		20m	China
Product temperature sensor		3pcs	China

6. The basic units (project).

The machine design: The material of coater is stainless steel SS304 and SS316L

The heater is stainless steel steam heater.

Display by touch-screen, controlled by Siemens PLC.

Double collecting and filting bags system, remove dust complete.

7. SERVICE AFTER SELL:

Documentation:

We will furnish test certificates for raw material like for SS304.and SS316L

Also we will submit test certificates for all bought out items like motor and gear box.

IQ, OQ documentation will be given as per standard format suggested by your company.

Two copies of Operational manual with English will be given at the time of dispatch of machine.

FAT&SAT(by client) will be executed

All our machines guaranteed for trouble free performance for a period of 12 months from commissioning.

Installation and service after sell for free for one year, the air ticket from china to Client’s and Client’s to china will for the buyer’s account.

And the buyer should supply our engineer’s room and food!
