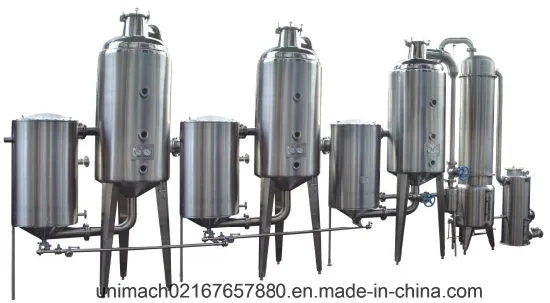

Three Effect Energy-Saved Concentrator/ Evaporator (ZNS series) 1
Three Effect Energy-Saved Concentrator/ Evaporator (ZNS series) 2
Three Effect Energy-Saved Concentrator/ Evaporator (ZNS series) 3
Three Effect Energy-Saved Concentrator/ Evaporator (ZNS series) 4
Three Effect Energy-Saved Concentrator/ Evaporator (ZNS series) 5
Three Effect Energy-Saved Concentrator/ Evaporator (ZNS series) 1
Three Effect Energy-Saved Concentrator/ Evaporator (ZNS series) 2
Three Effect Energy-Saved Concentrator/ Evaporator (ZNS series) 3
Three Effect Energy-Saved Concentrator/ Evaporator (ZNS series) 4
Three Effect Energy-Saved Concentrator/ Evaporator (ZNS series) 5

Three Effect Energy-Saved Concentrator/ Evaporator (ZNS series)

    oops...!

    no product data.

    Go to homepage
    Three Effect Energy-Saved Concentrator/ Evaporator (ZNS series)

    Three Effect Energy-Saved Concentrator/ Evaporator (ZNS series)

    Three Effect Energy-Saved Concentrator/ Evaporator (ZNS series)


    Three Effect Energy-Saved Concentrator/ Evaporator (ZNS series)

    Three Effect Energy-Saved Concentrator/ Evaporator (ZNS series)


    Applications and features:

    This equipment is widely used to concentrate the liquid in pharmaceutical, chemical, food, dairy products industries, especially applying to concentrate thermal medicine under vacuum and low temperature.

    1. It is designed according to the principle that the steam contains less heat energy under the low temperature(vacuum) condition than it does under the high temperature condition, while under the low temperature condition, the heat of vaporization is high instead.
    2. Referring to the related foreign data, an excellent structure has been adopted in evaporator and heater to remove the steam resistance, decrease the vacuum loss, and reduce the heat wastage, which has gained remarkable energy-saving affection.
    3. A strong flow technology of external heating temperature difference cycle has been adopted, which can make cycle speed high, evaporating speed fast, the time to receiving heat short, and not to curdle easily. Its concentrating ratio can reach 1.4 or so.
    4. Adopt a three-effection evaporating simultaneously to make full use of the second steam, and each affection s different vacuum evaporating operation, which can reduce each affection s evaporating temperature, especially applying to thermal medicine s concentrating requirements.
    5. The whole set of equipment is made of high-quality stainless steel, according to the demands of the law of medical medicine and food sanitation and reaching the requirements of GMP.

    Model ZNS3-500 ZNS3-700 ZNS3-1000 ZNS3-1500 ZNS3-2000 ZNS3-3000 ZNS3-5000
    Evaporation
    (kg/h)
    500 700 1000 1500 2000 3000 5000
    Steam consumption (kg/h) 200 280 400 600 800 1200 1800
    Steam pressure (MPa) 0.05~0.09
    Vacuumization (MPa/ºC) one effect 0.04MPa (85ºC),two effect 0.06MPa (75ºC),three effect 0.08MPa(65ºC)


    Packaging & Shipping

     1.Nomally shipping steps:

     S45PNZ%`OL`M6O8H}V(SDJ

    2.Our packing and shipping:

    (4[KDGL_NF%E6%2]D`4JYP

    Our Services

     0OC}YRDYXP])TO]QMXZ48IJ

         Pre-Sales Service:



             * Inquiry and consulting support.



             *Quickly reaction.



              *Factory inspection available anytime.





          After-Sales Service:



             *Prompt technical support



            *Engineers available to service machinery overseas



            *Installation &commissioning,good training for customers.





    Our customer

     KE1PX$_SO]LLORZU3`DH8UW



    Certifications

    [$X~Z{0)[{$PW5F}H666N6M



    Company Information

    RX2]L7{%NOW0`YXF9~)M{_G



    FAQ

     Q1.What's your delivery method?

     A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



    Q2.What products can you provide?

    A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



    Q3. What's the payment terms?

    A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



    Q4.How do you ensure your product quality?

    A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



    Q5:Does the machine power voltage meet buyers' factory power source?

    A5: We can do it as your request.



    Q6: Is it difficult to install the machine ?

    A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

    For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

    You will get videos and instructions about installation of machine from us.
