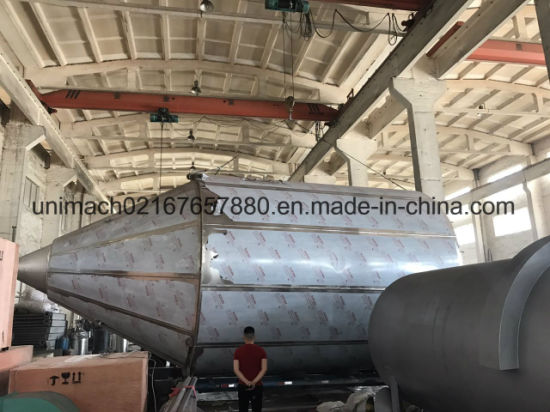

Ypg Pressure Spray Dryer (Nozzle Spray)
YPG Pressure Spray Dryer (Nozzle Spray)
Specifications
1. GMP
2. Dry liquid to powder
3. Drying time is short
4. Easy to operate
Description of YPG Pressure Spray Dryer
This set is an apparatus that can finish drying and granulating at the same time. The needed ball granule with certain size and ratio can be got in accordance with requirements of process to adjust pressure, flow, and size of atomizing hole.
The working of this set is as follows: The liquid of raw material is pumped in through diaphragm pump. The liquid of raw material be atomized into tiny droplets. Then it gathers with hot air and falls off. Most parts of powder material will be collected through the outlet of discharged at the bottom. The wasted air and fine powder will be collected through collector at the bottom of cyclone. At the outlet it can also be equipped with two grades of duster. Its ratio of recovery will be 99%.
Features of YPG Pressure Spray Dryer
1. The drying speed is fast. The surface area of liquid raw material after being atomized will be increased greatly. 95-98% of moisture can be evaporated at a moment. The time of drying needs about ten seconds to several tens of seconds. It is suitable for drying heat sensitive material particularly.
2. The finished product is ball granule with uniform size. Its fluidity and solubility are good. The purity of product is high and its quality is good.
3. The scope of application is wide. According to the characteristics of raw material, it can use hot air to dry and can also use cool air to granulate. It has strong adaptability to raw materials.
4. Small atomizing power
5. Its operation is simple and stable and convenient and is easy to realize automatic operation.
Scope of application of YPG Pressure Spray Dryer
1. Chemical industry: Organic catalyst, resin, synthetic washing powder, oils, thiamin, dyestuff, intermediate of dyestuff, white carbon black, graphite, ammonium phosphate and so on.
2. Foodstuff: Amino acid and similar substance, flavoring, protein, starch, dairy products, extractive substance from coffee, fish powder, extractive substance from meat and so on.
3. Pharmaceutical: Chinese patent medicines, agrochemicals, antibiotics, medical drinking agent and so on.
4. Ceramics: Magnesium oxide, kaoline, all kinds of metallic oxide, dolomite and so on.
5. Granulating through atomizing: All kings of fertilizer, aluminum oxide, ceramics powder, pharmaceutical, heavy metallic super hardness steel, chemical fertilizer, washing powder, Chinese patent medicines and so on.
| Model | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| Water evaporation capacity Kg/h | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| Overall dimension(Φ*H) mm | 1600×8900 | 2000×11500 | 2400×13500 | 2800×14800 | 3200×15400 | 3800×18800 | 4600×22500 |
| High-pressure pump pressure MPa | 2-10 | ||||||
| Power Kw | 8.5 | 14 | 22 | 24 | 30 | 82 | 30 |
| Inlet air temperature ºC | 300-350 | ||||||
| product water contents % | less than 5 percent, and 5 percent can be achieved. | ||||||
| collection rate % | >97 | ||||||
| electric heater Kw | 75 | 120 | 150 | When the temperature is lower then 200, the parameters should be calculated according to the practical condition. | |||
| electricity + steam Mpa+Kw | 0.5+54 | 0.6+90 | 0.6+108 | ||||
| hot air furnace Kcal/h | 100000 | 150000 | 200000 | 300000 | 400000 | 500000 | 1200000 |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
