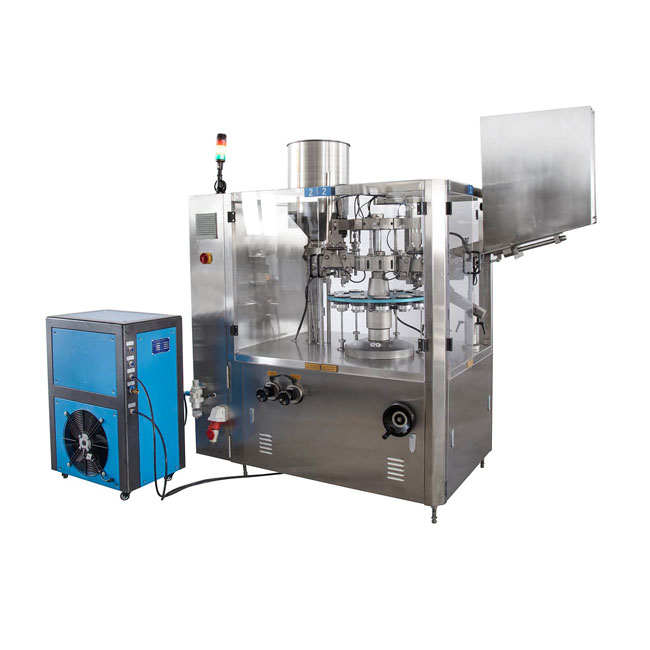

Filling Sealing Machine
1.suit for plastic tube, plastic composite tube fiiling and sealing
The control parts of the machine are composed of intelligent man-computer interface, large touch screen display/operation control panel, including temperature setting, motor speed, filling speed, direct screen display and screen control.The components of the machine which touches the filling material are made of stainless steel SUS304 and SUS316L. Transparent cover, feeding hose, feeding device are also supplied with the machine. The machine is featured with safety switch, auto-stop, soft tube positioning, photoelectric sealing control etc. During the process, hose feeding and setting, filling and sealing, ejecting are all auto matically controlled. Digital count device is installed at the low front part of the machine. During filling process the filling head is put inside the material pot to avoid air-entrance. For high viscosity filling material, blow-off device is installed to ensure a complete sealing. Many choices of sealing type are available to meet different need of clients.
1. Production capacity :30-90 / min
2. Filling volume :5-250ml / branch
3. Filling error: ≤ ± 0.5%;
4. Applicable tube diameter :10-50mm
5. Applicable hose length: 50-200mm
6. Main motor power: 2.2kw
7. Hot air power: 3kw
8. Working pressure: 0.6PMa
9. Dimensions: 2270 * 960 * 2100 ( mm)
10. Weight: 900kg
1.the following transmission part enclosed in the platform, safe, reliable, non-polluting;

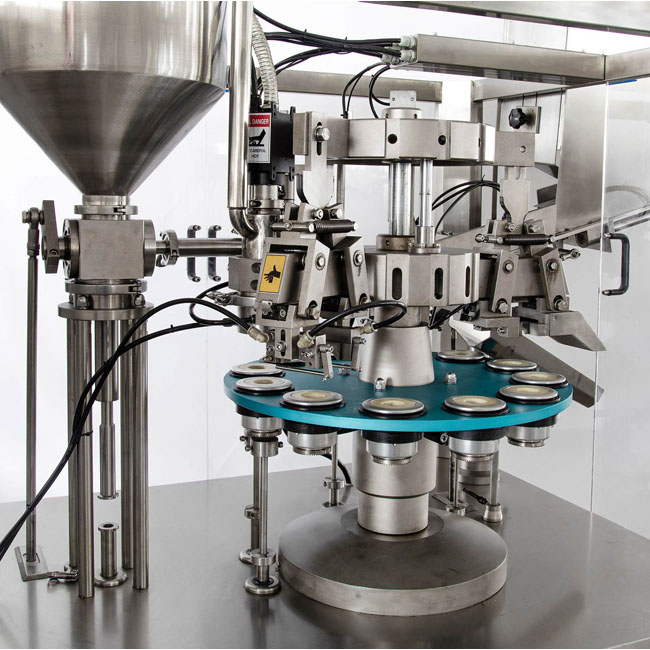

2.filling and sealing parts mounted on the platform above semi-closed static frame viewing hood, easy to observe, easy to operate, easy to maintenance;
3.PLC control, man-machine conversation interface;
4.circuitous dial to cam drive, high speed, high precision;
5.box and Inclined tube position, optionally;
6.curved armrest with a vacuum adsorption unit, handrails and pressure tube device interaction, the hose is fed into the upper tube station;
7.photoelectric standard workstations, high-precision sensor, stepper motor control hose pattern in the correct position;
8.movable injection materials head deep inside the hose injection material, side exit side note, the end of injection material delivery nozzle with integrated manner to ensure filling blow cut quality;
9.no tube no filling;
10.sealing adoption (Leister hot air gun) tail pipe internal heating , cooled by cooling means external configuration;
11.the workstation automatically typing the code number printed on the process requirements of the position;
12.cut plastic robot at a right angle or a rounded end of the hose for selection;
13.fault Baojing, no pipe alarm , the door opened shutdown, overload shutdown;
14.counting and quantitative downtime;
1.Nomally shipping steps:
2.Our packing and shipping:
* Inquiry and consulting support.
*Factory inspection available anytime.
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
