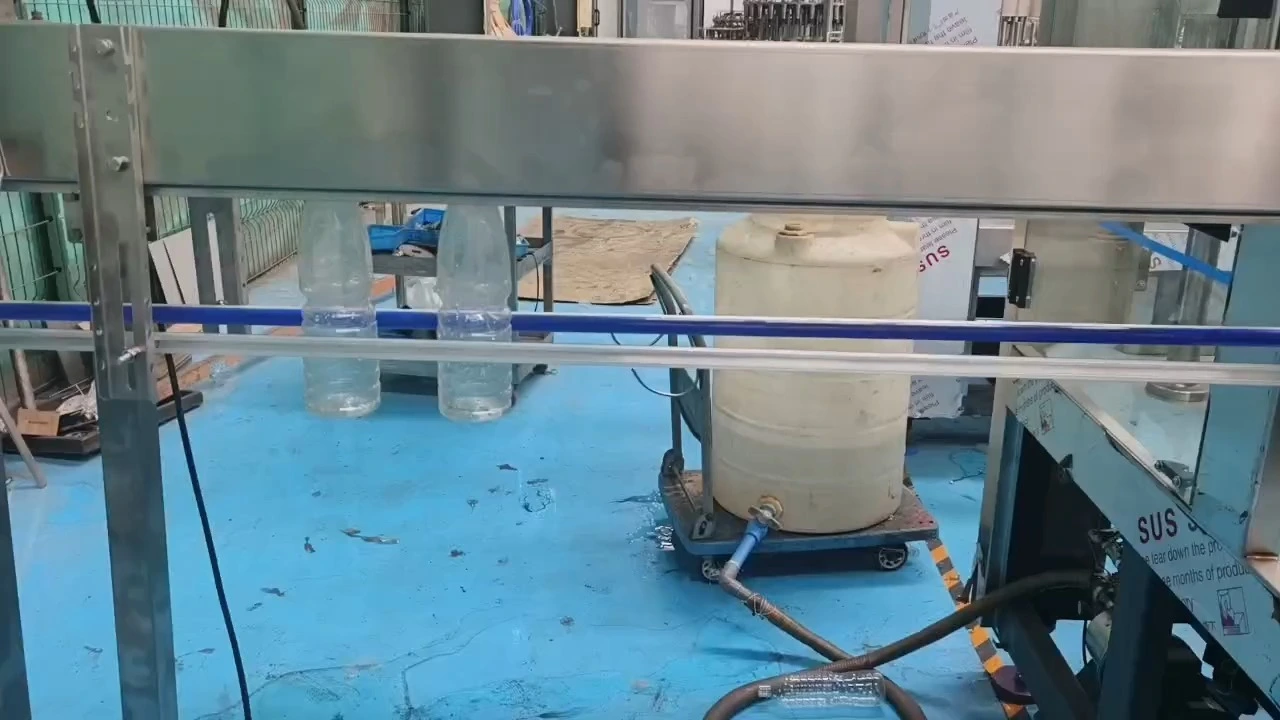

Automatic liquid filling machine

Bottled water filling machine， Pure water production equipment

Bucket water filling machine is an automated equipment used for bulk mechanized filling of bottled drinking water, mainly serving purified water plants and mineral water plants, suitable for the full process treatment of 3-5 gallon water buckets. This device integrates functions such as disinfection, flushing, filling, and capping, and uses a three-phase AC 380V power supply. The core modules include bottle washing, filling, electrical control, and pneumatic system.
The whole machine is made of high-quality stainless steel material and equipped with a microcomputer control system and PLC controller. The standard production capacity of the model is 2000 bottles/hour. Some models support dual row high-pressure injection system and insertion type non pressure filling technology, with stable and efficient filling speed. The equipment achieves precise interval filling through an intermittent infusion mechanism, combined with a sealing structure to prevent liquid leakage. Part of the patented technology introduces a quantitative cylinder and an electric push rod drive system to achieve real-time monitoring and automatic control of water volume, while adopting a gas spring maintenance door design to improve maintenance convenience. The equipment can be combined with capping machines, heat shrink film machines, etc. to form a fully automated production line, suitable for various containers such as polyester bottles and plastic bottles.

Certification:

Warranty:

1 year

After-sales Service:

12 hour response

Shipping:

by sea,air and train

Place of Origin:

shanghai of china

Payments:

by T/T

Brand:

SUPM

Material Type:

stainless steel

Model NO.:

CGFH8-8-3

Inquiry

Write a Review

Material

stainless steel

After-Sales Service Provided

12 hour response

Material Type

stainless steel 304

A bottle washing machine

1) The rotating disk is entirely made of stainless steel SUS304 welded together.

2) The rubber clamp block of the bottle clamp securely holds the bottle mouth, ensuring stability and reliability.

3) The imported special and efficient spray nozzle is used to spray bottle washing water at a set angle, which can be washed to any part of the inner wall of the bottle, thoroughly and save bottle washing water.

4) The power of the bottle washer is transmitted through gears by the transmission system inside the rack.

Transition wheel:

1) Using high-quality stainless steel pulleys.

2) Equipped with a bottle protection device.

Thcapping machine

The capping machine is the highest precision single machine among the three in one machines, which greatly affects the reliability of equipment operation and the defect rate of products. The characteristics of the capping machine produced by our company are as follows：

1) Introduced the world's most advanced French "ZALKIN" capping machine technology, combined with the production experience of aseptic filling machines, and specially invited experts and professors from the Institute of Mechanical and Electrical Design and Automation Technology at Shanghai Jiao Tong University School of Mechanical Engineering to assist in the design. For example: I) The lifting cam of the capping head (the main component for the smooth operation of the capping machine), while using the "ZALKIN" technology, was designed for kinematics and dynamics by expert professors, greatly improving the smooth operation and reliability of the capping machine. II) The screw cap head (the main component for reliable screw cap effect) has been improved by experts and professors in the design of the magnetic steel, which not only retains the original magnetic torque adjustment device (marked with a torque adjustment dial) for convenient torque adjustment, but also allows for the setting of screw cap head torque according to actual production needs. In addition, it also makes the screw cap torque more accurate, the screw cap effect more reliable, and can better reduce the rate of defective seals.

2) The lid guide rail is equipped with a mechanism to prevent reverse lid passage and retrieval, as well as a set of photoelectric switches. When there is no lid on the lid guide rail, the machine will automatically stop running, effectively avoiding the occurrence of bottle caps.

3) There is a bottle feeding detection switch for the capping machine, which is interlocked with the cap locking cylinder at the connection between the cap guide rail and the capping plate to control the discharge of the bottle cap, ensuring that the feeding of the cap stops when there are no bottles and reducing the loss of caps for users.

4) Efficient centrifugal lid cleaning method with minimal wear on the lid.

5) There is a bottle cap detection mechanism for controlling the start and stop of the bottle cap lifting machine.

Bottle Star Wheel

1) Nylon wheel and conveyor chain work together to produce bottles.

2) Equipped with a bottle protection device.

I. Bottle delivery chain

1) The transmission motor adopts variable frequency speed regulation, which is synchronized with the three in one bottling machine, effectively preventing the bottles from tipping over.

2) The bottle conveyor chain is equipped with a photoelectric switch, which can control the three in one filling machine to slow down and stop in case of bottle tipping.

II. Rack

1) The rack is welded from high-quality carbon steel and undergoes surface rust prevention treatment and spraying. The surface is covered with stainless steel plate (SUS304).

2) The three in one machine transmission system is located under the rack surface and is driven by a main motor using gear transmission.

3) The transmission gear adopts a cross arrangement of steel gears and nylon gears.

4) The main motor output shaft is equipped with an overload protection mechanism to effectively ensure machine safety.

electric control system

The electric control cabinet is made of stainless steel SUS304 and is equipped with maintenance lighting inside. The PLC automatically controls the entire process of the three in one bottling machine from bottle feeding to bottle discharging.

Automatic cover up machine

Working Principle:

1. The capping device is equipped with a detection switch. When the bottle cap is consumed to a certain extent, the detection switch sends a signal to activate the capping device to send the cap.

2. There are a certain number of bottle caps in the lid compartment. The vibration plate shakes the bottle caps into the air duct under the action of the vibration motor. Under the wind force of the fan, the bottle caps are sent to the lid organizer through the conveying duct.

3. By inserting the board, the size of the lid opening of the lid compartment can be changed to adjust the speed of lid dropping.

Technical Specifications:

1. Model: SGB-00

2. Fan: 380V, 0.55KW

3. Vibration motor: 380 V, 60W

4. Dimensions: 1000 × 900 × 1290 (length × width × height)

Technical Specifications

model	CGF8-8-3 type
workstation count	Aseptic washing bottle 8, filling 8, sealing 3
Rated production capacity	2000 bottles/hour (500ml/bottle)
Filling method	Gravity filling
Adapt to bottle shape	Diameter 50-90, bottle height 165-290
air supply pressure	0.7 MPa
Gas consumption	0.8M³/min
Bottle washing water pressure	0.2-0.25 MPa
Water consumption for bottle washing	1.4 tons/hour
rated voltage	380V
Main motor power	2.2Kw
Total capacity of motor	3.5Kw
Overall dimensions of the host	1800 × 1400 × 2000 (length × width × height)
Equipment weight	1500Kg
