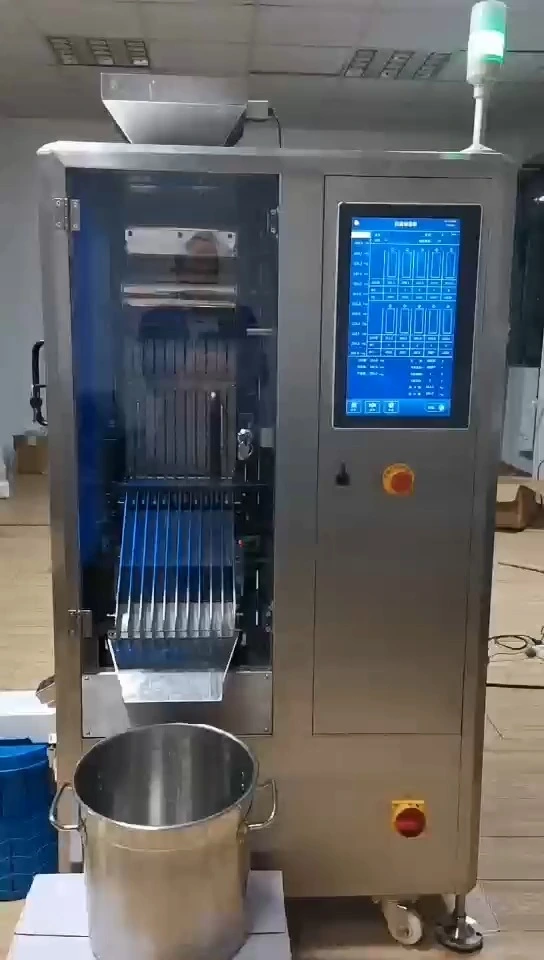

automatic capsule check weigher
Introduction to capsule tablet weighing function:
The dynamic capsule weighing machine adopts the method of changing molds to process capsules or tablets of different specifications and weigh them one by one. It can be weighed offline or connected to a tablet press or filling machine online to separate capsules or tablets that are not qualified due to insufficient weight. It can perform three-level permission management for data storage, printing, analysis, and device interface operating system. Different permissions can be set according to different personnel, and the system has operation traceability records for tracking and auditing.
Schematic diagram explanation:
Capsules or tablets are placed into the storage bin through an intelligent feeding control system. The rotating mechanism of the storage bin allows the capsules or tablets to be sorted and queued in the discharge pipeline, and then enter the weighing platform one by one. The fastest time they stay on the sensor is only 0.2 seconds. Using the company's unique filtering algorithm, the highest accuracy can reach 0.5mg, and they are weighed one by one. When they slide into the material trough and pass the inspection, they will smoothly slide down. Unqualified ones will be separated into the rejection box by the rejection mechanism.
Product advantages:
1: Adopting advanced German technology, the high-precision ten thousand position balance weighing unit and unique dynamic filtering algorithm can achieve a maximum accuracy of 0.5mg (depending on the material) for high-speed and stable weighing.
2: Free weight internal automatic calibration function, built-in E-class high-precision weight one click automatic calibration, no need for manual weight calibration.
3: The weighing sensor is designed with no powder accumulation to avoid errors in powder weighing caused by long-term capsule or tablet weighing on the weighing platform.
4: The deformation protection device of the weighing sensor can withstand 500% of destructive overload and prevent sensor damage caused by overload.
5: The mold has undergone anti-corrosion and hard treatment, and the drug contact surface is made of stainless steel 316 material, which meets the requirements of drug contact without pollution.
Technical Specifications：
No | UN-CT10 Technical parameters and introduction |
1 | Can detect all types of capsules including 000 #, 00 #, 0 #, 1 #, 2 #, 3 #, 4 #, 5 #, SA, SB, as well as conventional tablets |
2 | Weight detection range: 0-2000mg. |
3 | Suitable for capsules and tablets of different production specifications |
4 | Accuracy range within ± 1-2mg |
5 | Compliant with 21CFR Part 11, third level password, electronic records to ensure data integrity and facilitate audit tracking; |
6 | Support remote monitoring and WiFi module functionality |
7 | Host power supply: 220V, 50HZ. |
8 | 15.6-inch resistive screen touch mode |
9 | One click automatic calibration function, built-in E-grade stainless steel weights. |
10 | Supports communication interfaces RS-232, RS485, Mudbus TCP communication protocol, USB, and Ethernet |
11 | Quick mold replacement device, disassembled by hand. |
12 | Automatic startup cleaning, manual reset, data clearing. |
13 | Fault alarm, emergency shutdown. |
14 | Sensor overload protection, AD separation mode. |
15 | The material contact part is made of stainless steel or treated with hard anti-corrosion treatment, which will not cause drug contamination. |
16 | Supports USB data export and external printer. |
17 | Self protection against sudden power outages to prevent data loss. |
18 | Remote monitoring function, mobile monitoring, etc. are implemented for convenient management. |
19 | Storage hopper shortage alarm, associated with elevator malfunction function. |
18 | Counting function, timely understanding of the weighed quantity. |
20 | Support customized power supply voltage to meet the needs of foreign power sources. |
21 | One click automatic reset function, zero point tracking. |
22 | Support remote software upgrades and customized functions. |
23 | Temperature: 0 ℃~40 ℃, humidity: 30%~95% |
24 | External gas source 0.4-0.6Mpa |
25 | Can be used in conjunction with capsule filling machines, tablet presses, and elevators |
26 | Customizable for different production volumes and channels |
Remarks | The properties and usage environment of the tested product are different, and the detection speed and accuracy are also different, based on actual testing as the standard. |
