high speed tablet press

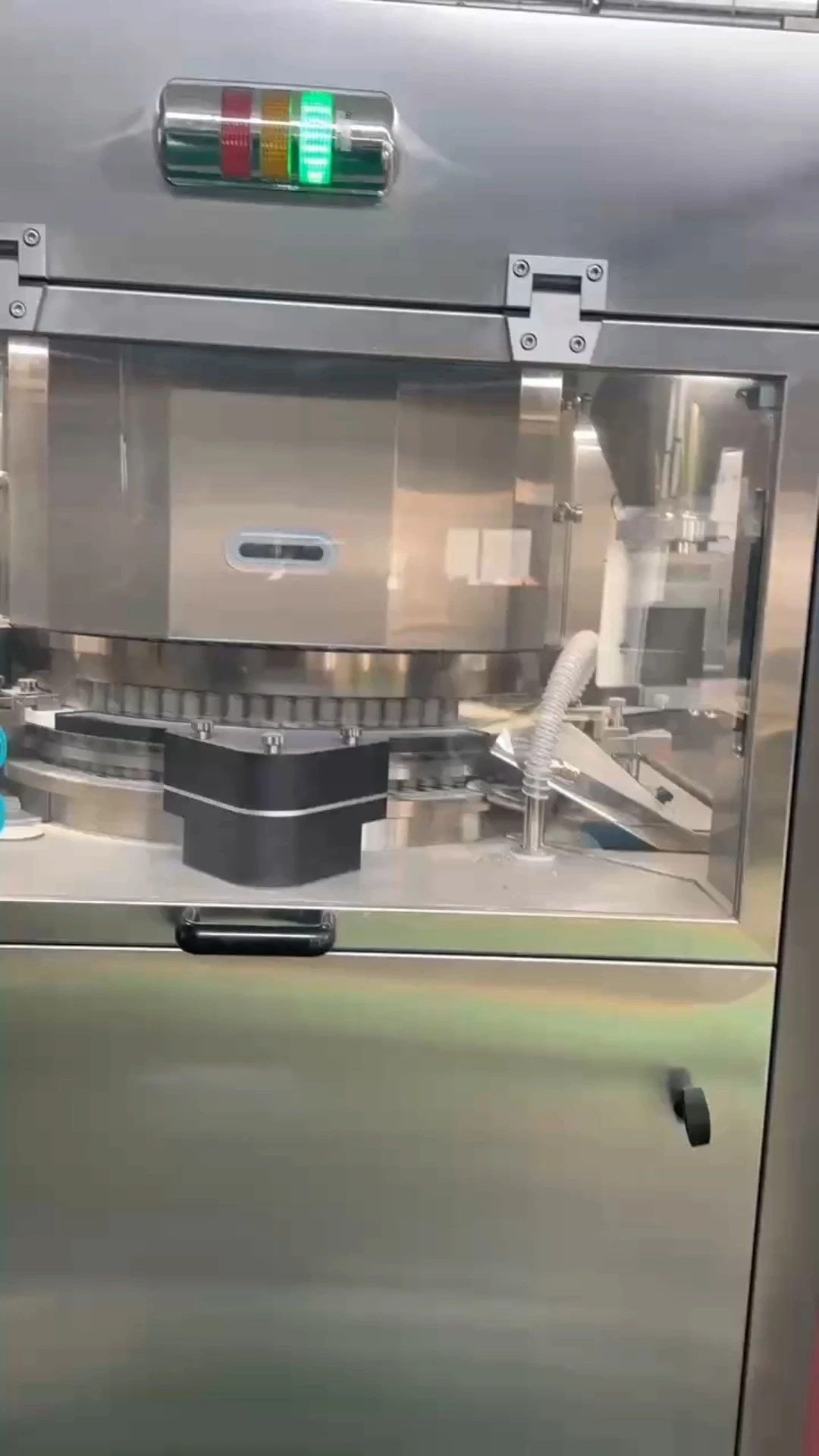

The part of the GZPK-83 tablet press machine is a fully enclosed tablet press chamber, the material metal in contact with the powder is acid-alkali resistant austenitic stainless steel, and the non-metallic material is non-toxic material. Four transparent Windows can be opened, so that the machine clean without obstruction, easy to replace the punch.
The lower part of the machine is sealed by four stainless steel doors with porous material inside, and contains various driving devices to ensure safety and reduce noise. The process of tablet pressing is completed by five steps: filling, measuring, pre-pressing, main pressing and tablet drawing. The operation of the tablet press is completely controlled by the touch screen on the electric control cabinet.
The main supporting structure of the GZPK-83 equipment is a four-column structure. As shown in the following figure, the bottom plate is equipped with a left and right stand, the left and right stand is equipped with a base plate, the base plate and the top plate are supported by four 140×140 columns, the height of the whole machine is only 1981, the center of gravity is low, so the equipment is very stable when running.
The upper main pressure wheel and the prepressure wheel are supported by two support plates, which are directly installed on the top plate, and finally the force is finally transmitted to the top plate and the column to ensure the pressure of the upper main pressure wheel and the prepressure wheel, and reduce the vibration and noise.
GZPK-83 tablet press is driven by the main motor, after the worm gear box deceleration, drive the spindle rotation. The main shaft is connected with the punching plate, and there are upper, middle and lower punching dies on the punching plate. The punching plate drives the upper and lower punching dies to rotate along the curve of the upper and lower guide rails, realizing five processes such as filling, measuring, pre-pressing, main pressing and drawing out, and completing the whole process of tablet pressing. See tablet pressing process flow chart and main drive system schematic diagram.
Related Parameters
|
Model |
GZPK-83 |
motor power（KW） |
11 |
|
Weight |
5000kg |
Size |
2500mm*1800mm*3800mm |
|
Brand |
SUPM |
Material |
stainless steel |
|
Certification |
CE |
Place Of Origin |
China |
|
R.P.M |
16~72 |
Number of punch |
83 |
|
Warranty |
1 years |
Packing |
wooden case |
|
MOQ |
1 set |
Age of Use |
10-20 years old |
The GZPK series products have the advantages of high precision, high speed automation program control, etc
Advanced and reasonable design is the foundation of excellent quality products. Combining years of experience in manufacturing and developing high-speed tablet presses with high-tech technology, our new design concept has enabled us to develop and produce the GZPK series of dual discharge high-speed tablet presses. The standardization, modularization, intensification, and serialization of product production have been achieved
It can compress double-layer tablets, circular tablets, circular tablets, engraved tablets, and anisotropic tablets, fully complying with GMP requirements, suitable for efficient and precise tablet pressing in industries such as pharmaceuticals, food, and chemicals.
