High speed powder filling production line
High speed powder filling line (80-100 bottles per minute)

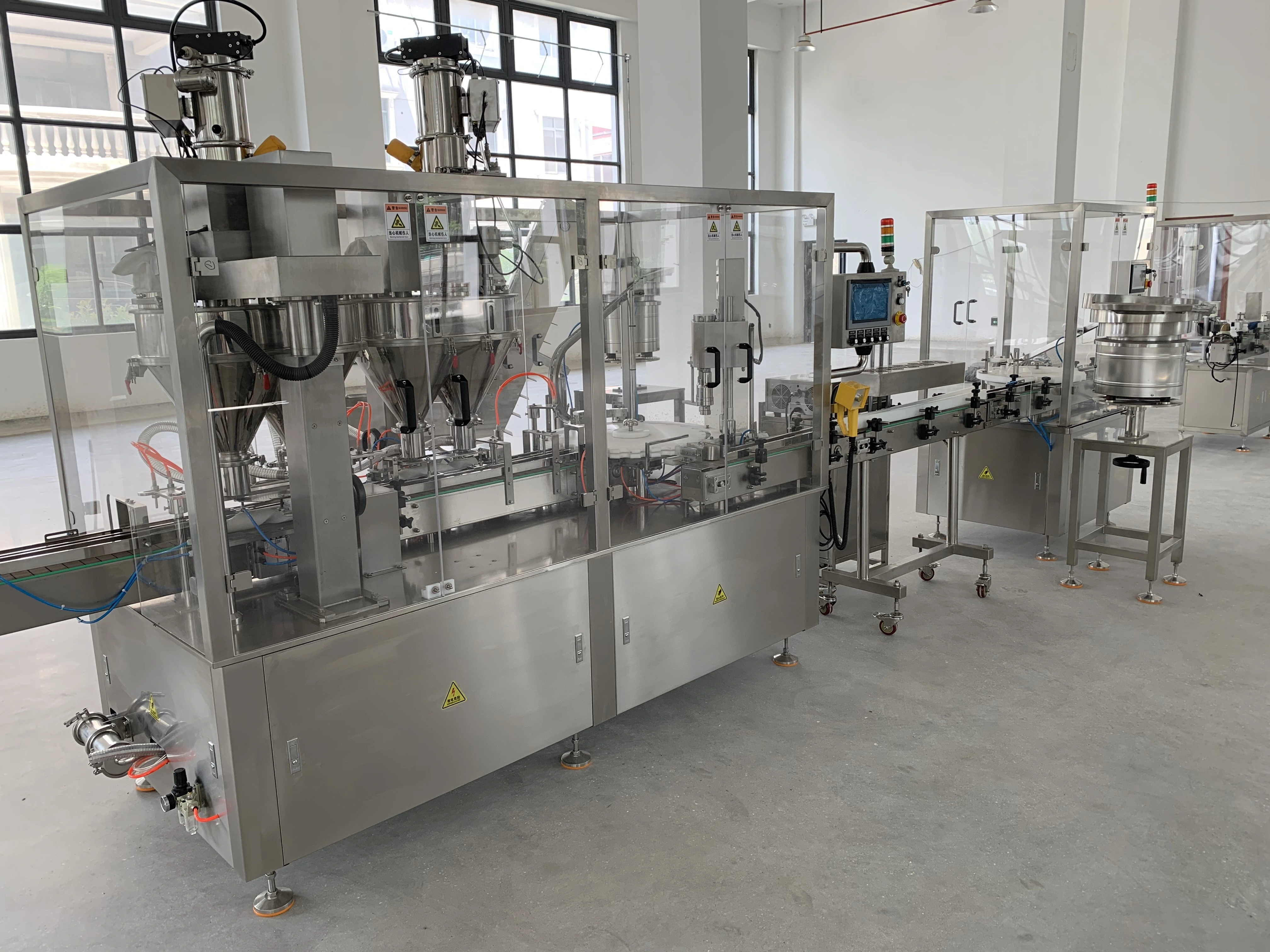

Bottle supply turntable, rotary air washing bottle machine, 4-terminal powder filling machine, 2-terminal capping machine
1、L-SP Bottle feeding machine
This machine is composed of turn table, bottle transfer channel, the machine order the bottle in one line, and delivery it to the washing machine. This machine can store the bottle, buffering the bottle, and change the bottle flow direction.
application: round bottle that can stand on the table steady
turn table dia. : φ950
transfer capability : comply with the washing machine
power supply: 220V 50HZ
power: 0.12KW
outside dimension: 1000×1250×950mm
main component
the table, and surrounding plate is imported good quality SUS 304/2B
regulating motor: Shanghai Songgang
Low Voltage Apparatus: Schneider
2、L-XP-24 Cylinder type Ultrasonic washing machine
This product is a bottle air blowing and suction cleaning machine (purified compressed air needs to be provided by the customer).
This product is mainly used in industries such as pharmaceuticals and food, and is suitable for cleaning powdered dust inside bottles. Easy to operate, convenient to maintain, and easy to adjust.
This product is used in conjunction with filling machines, counting machines, and other equipment.
When the bottle is transported by the conveyor belt to the bottom of the blowing and suction needle, it is blocked by the dial and stops moving forward. At this time, the flipping mechanism clamps the bottle and flips it 180 degrees. The blowing and suction needle synchronously presses down on the inside of the bottle through the cam for cleaning. When the suction needle is inserted into the bottle mouth for a certain length, the sealing gasket on the needle seat comes into contact with the flat surface of the bottle mouth and is appropriately compressed. At the same time, the mechanical valve opens, connects the intake pipeline, and blows air into the bottle through the needle tube. The air blown into the bottle is sucked out by the suction needle tube.
The compressed air blown in from the needle tube is filtered dry ion compressed air, which forms a gas circulation inside the bottle, strongly flushing the surface of the container and suspending the dust inside the bottle; The continuously running vortex air pump promptly discharges it from the slightly larger diameter suction pipe to complete the cleaning and dust removal process
Yield capacity: 80-150 pcs/min
Number of shampoo heads: 24
power： 2.50KW
compressed air： 380V 50HZ
compressed air consumption： 10m3/h,0.3~0.4kg/cm2
outside dimension： 2500×900×1800mm
Main Configuration：
the talbe and surrounding plate, and the part contacted with the bottle is imported good quality SUS 304/2B
Inverter: Siemens
Button: Schneider
Air switch: Schneider
AC contactor: Schneider
Speed reducer: goldgun, shanghai
The main motor：ABB
PLC： Siemens
touch screen： Siemens
3、L-FZ-4 Powder 4 heads Filling Machine
Purpose and performance
This equipment is a kind of machine type with functions of filling.. Headed filling/capping is available according to clients’specific requirements. It is applicable to packaging of powder solid particles in pharmaceutical and food industry . this machine has compact structure and is simple in operation.
Working Principle:
The powder filling machine is mainly suitable for powder packaging of round or irregular bottles. When the bottle is transported by the conveyor belt to the bottom of the filling head, it is positioned by the positioning cylinder and stops moving forward. At this time, the filling head fills the inside of the bottle. Accurate positioning of the bottle mouth, automatic shutdown for no bottle, missing bottle, and bottle pouring. When the bottle outlet encounters a blockage, the filling can automatically stop without affecting the filling accuracy. Once the blockage is resolved, the filling will automatically resume. When filling, the filling head is inserted into the bottle mouth for filling and equipped with an automatic dust removal device, dual station bottle feeding, double head filling, effectively improving production capacity, precise measurement, and simple operation. Compact structure, stable performance, and easy maintenance make it an ideal filling equipment.
Specification
Applicable specifications: 10-100g (to be equipped according to actual customer needs)
Output：80-100 bottles/min
Power： 380V 50HZ 6.5KW
Weight： 1200㎏
outside dimension: 3000×1450×2150mm
main component
the talbe and surrounding plat is imported good quality SUS 304/2B
Inverter: Siemens
Button: Schneider
Air switch: Schneider
AC contactor: Schneider
Speed reducer: goldgun, shanghai
The main motor：ABB
PLC： Siemens
touch screen：Siemens
Powder servo motor: TECO Taiwan Dongyuan
3、L-ZD-2 2 heads Capping machine
Working principle: When the filled bottle is transported by the conveyor belt or the previous filling machine to the capping position, the capping machine track automatically puts on the cap. After the capping work is completed, the bottle runs to the lower end of the capping head for intermittent pause. The capping head is pressed down by the connecting rod mechanism and rotates clockwise (the capping speed is adjustable) to complete the capping work. The height of the entire machine base of the capping machine's capping head can be adjusted, and the speed of the entire action process of capping and tightening can be adjusted; The capping speed is adjustable.
The lid is equipped with an automatic lid sorting device, which arranges the messy bottle caps in an orderly manner and enters the hanging station along the sliding track, with accurate and error free positioning. The screw cap movement is driven by the groove cam to install the fixing plate on the screw cap head on the connecting rod, thereby driving the screw cap head to rise or fall; When screwing the cap, there is a positioning cylinder to locate the bottle to prevent damage to the bottle body. The linear bearings used for the capping machine table are selected from Germany's Eges oil-free bearings to avoid contamination of the product.
Yield capacity: 80-100pcs/min
Capping station: 2
Qualified cap putting: more or equal then 99%
Qualified capping: more or equal then 99%
power supply： 380V 50Hz
power： 2.5kw
outside dimension： 2500×1470×1800mm
Main Configuration：
the talbe and surrounding plate, and the part contacted with the bottle is imported good quality SUS 304/2B
Inverter Siemens
Button: Schneider
Relay: Omron
Air switch: Schneider
AC contactor: Schneider
The main motor：ABB
PLC： Siemens
touch screen： Siemens
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
